H12 / Angola An. coluzzii / Chromosome 2 / #9

This page describes a signal of selection found in the Angola An. coluzzii population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2R between positions 44,900,001 and 45,360,000. The evidence supporting this signal is weak (\Delta_{i} < 50 on one or both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 8 genes overlap the focal region: AGAP003874 (uridine kinase), AGAP003875, AGAP003876 (bHLH factor, other), AGAP003877, AGAP013059, AGAP003878, AGAP003879 (VhaAC45 - vacuolar H ATPase AC45 accessory subunit), AGAP003880.

The following 2 genes are within 50 kbp of the focal region: AGAP003872, AGAP003873 (protein crumbs).

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

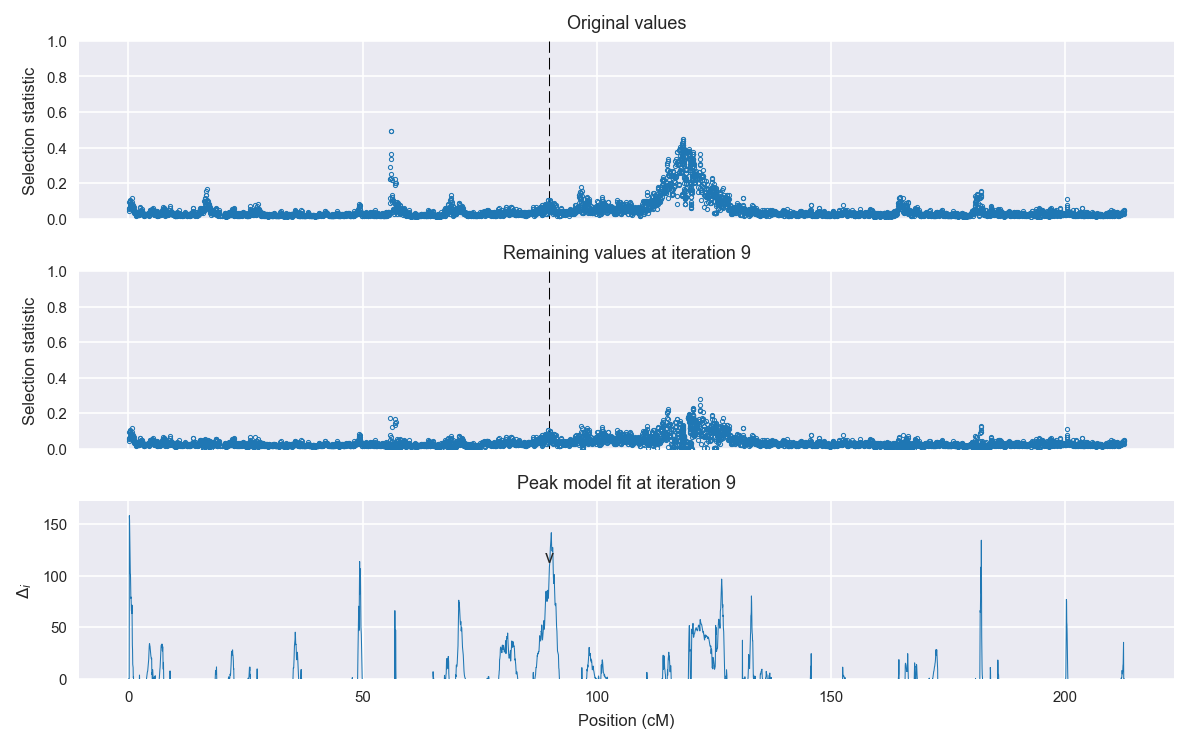

Selection signal in context. @@TODO

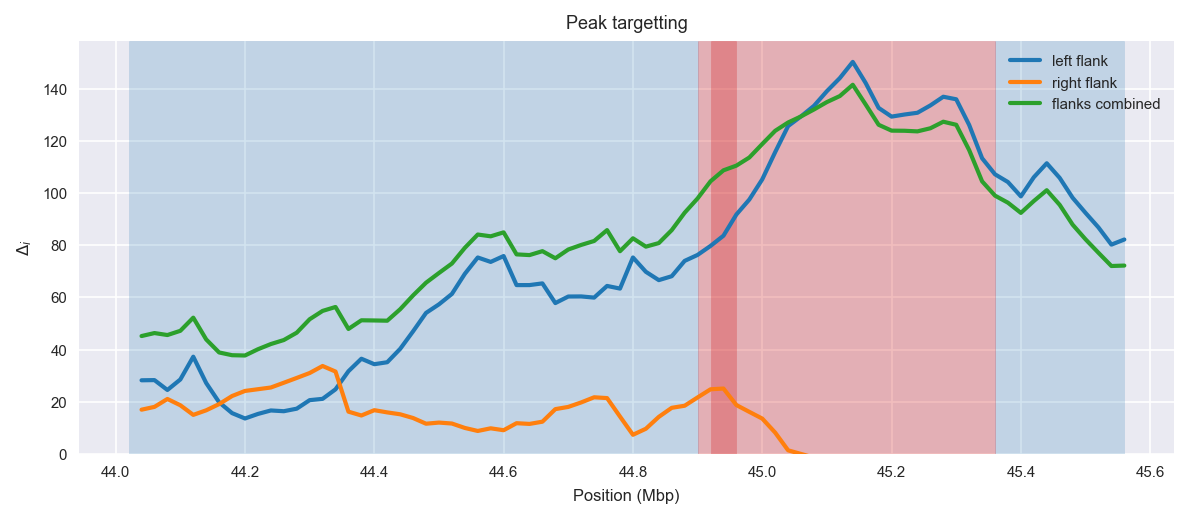

Peak targetting. @@TODO

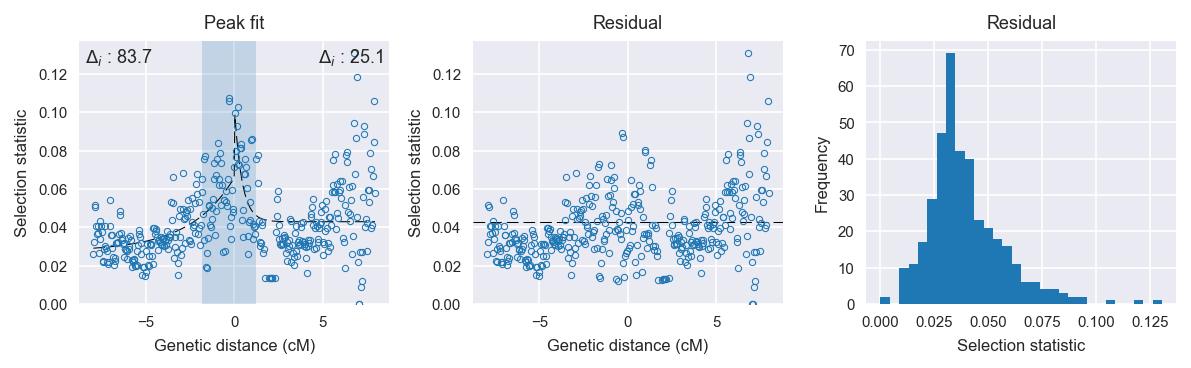

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 47
    # data points      = 198
    # variables        = 3
    chi-square         = 0.031
    reduced chi-square = 0.000
    Akaike info crit   = -1730.388
    Bayesian info crit = -1720.523
[[Variables]]
    amplitude:   0.03830485 +/- 0.003442 (8.99%) (init= 0.5)
    decay:       2.50648268 +/- 0.673698 (26.88%) (init= 0.5)
    c:           0.02747964 +/- 0.003049 (11.10%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.892
    C(amplitude, c)              = -0.391

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 39
    # data points      = 188
    # variables        = 3
    chi-square         = 0.078
    reduced chi-square = 0.000
    Akaike info crit   = -1458.484
    Bayesian info crit = -1448.775
[[Variables]]
    amplitude:   0.06146088 +/- 0.013989 (22.76%) (init= 0.5)
    decay:       0.42199836 +/- 0.138147 (32.74%) (init= 0.5)
    c:           0.04290625 +/- 0.001677 (3.91%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.704
    C(decay, c)                  = -0.328

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 197
    # variables        = 1
    chi-square         = 0.046
    reduced chi-square = 0.000
    Akaike info crit   = -1646.732
    Bayesian info crit = -1643.449
[[Variables]]
    c:   0.03881133 +/- 0.001087 (2.80%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 187
    # variables        = 1
    chi-square         = 0.087
    reduced chi-square = 0.000
    Akaike info crit   = -1433.421
    Bayesian info crit = -1430.190
[[Variables]]
    c:   0.04569771 +/- 0.001579 (3.46%) (init= 0.03)
