H12 / Angola An. coluzzii / Chromosome X / #1

This page describes a signal of selection found in the Angola An. coluzzii population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm X between positions 4,300,001 and 4,340,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 3 genes overlap the focal region: AGAP000228 (netrin 1), AGAP0002303 (Or52 - odorant receptor 52), AGAP0129752 (histamine-gated chloride channel subunit).

The following 5 genes are within 50 kbp of the focal region: AGAP013512, AGAP0002263 (Or41 - odorant receptor 41), AGAP000232 (regulator of G-protein signaling), AGAP000233, AGAP000234.

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

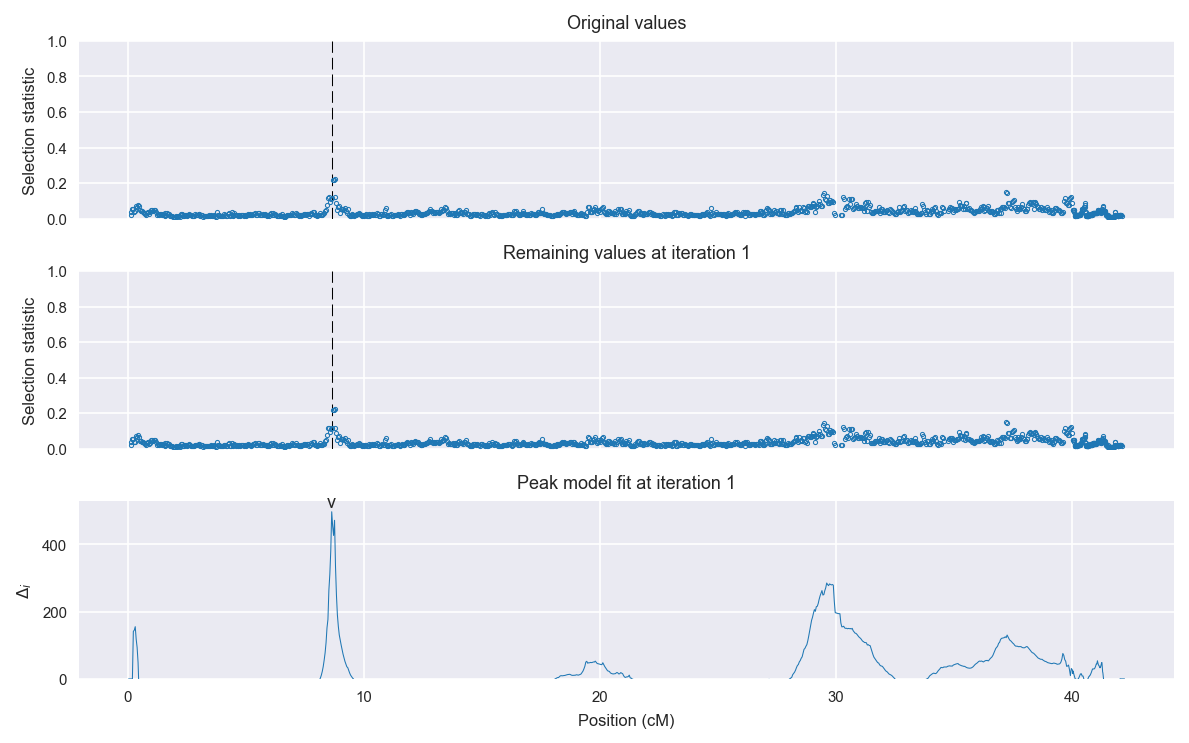

Selection signal in context. @@TODO

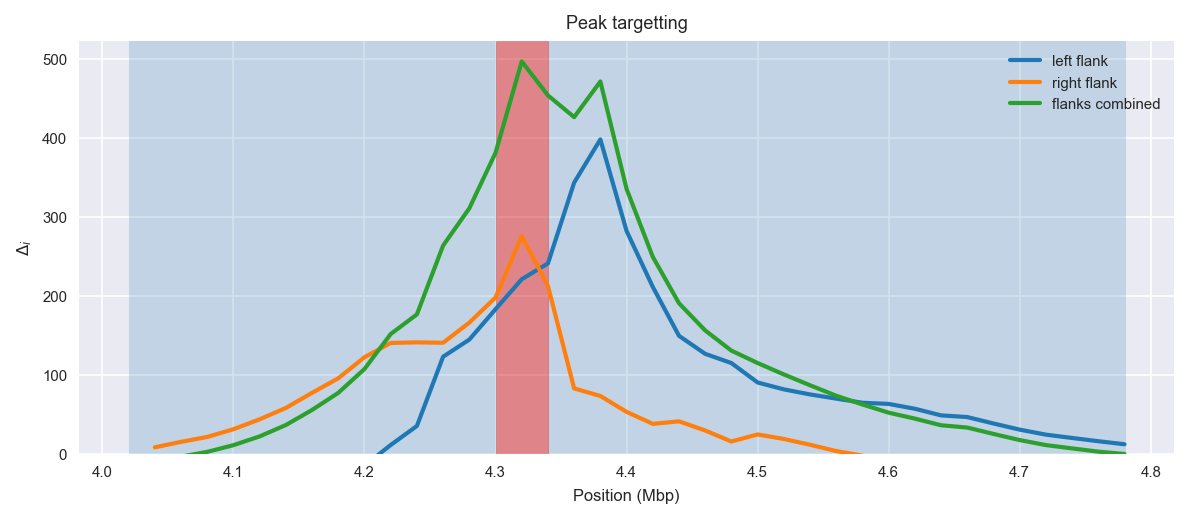

Peak targetting. @@TODO

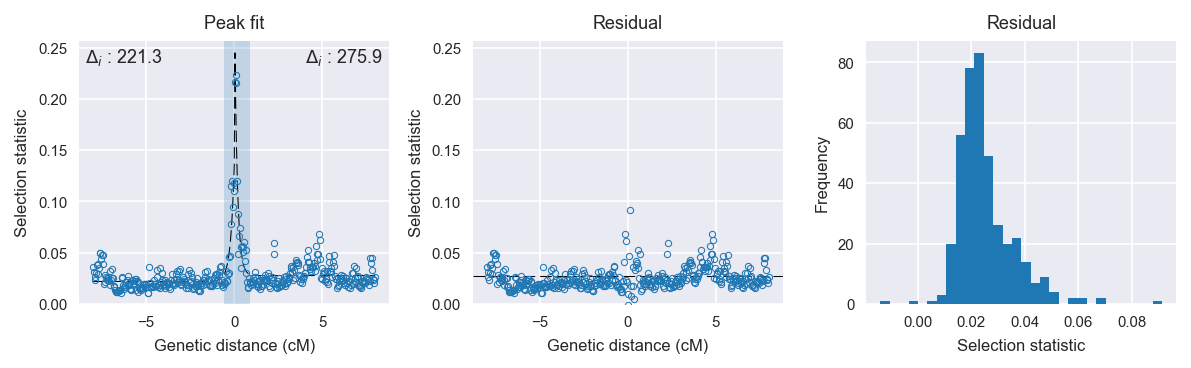

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 39
    # data points      = 201
    # variables        = 3
    chi-square         = 0.015
    reduced chi-square = 0.000
    Akaike info crit   = -1901.175
    Bayesian info crit = -1891.265
[[Variables]]
    amplitude:   0.11382227 +/- 0.006435 (5.65%) (init= 0.5)
    decay:       0.20703501 +/- 0.018682 (9.02%) (init= 0.5)
    c:           0.02188869 +/- 0.000653 (2.98%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.611
    C(decay, c)                  = -0.233

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 27
    # data points      = 200
    # variables        = 3
    chi-square         = 0.027
    reduced chi-square = 0.000
    Akaike info crit   = -1773.764
    Bayesian info crit = -1763.869
[[Variables]]
    amplitude:   0.27866577 +/- 0.015409 (5.53%) (init= 0.5)
    decay:       0.16045860 +/- 0.011253 (7.01%) (init= 0.5)
    c:           0.02766387 +/- 0.000868 (3.14%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.779
    C(decay, c)                  = -0.205

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 200
    # variables        = 1
    chi-square         = 0.045
    reduced chi-square = 0.000
    Akaike info crit   = -1679.856
    Bayesian info crit = -1676.558
[[Variables]]
    c:   0.02463888 +/- 0.001058 (4.29%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 199
    # variables        = 1
    chi-square         = 0.106
    reduced chi-square = 0.001
    Akaike info crit   = -1497.815
    Bayesian info crit = -1494.522
[[Variables]]
    c:   0.03162758 +/- 0.001640 (5.19%) (init= 0.03)
