H12 / Guinea Bissau / Chromosome 2 / #3

This page describes a signal of selection found in the Guinea Bissau population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2L between positions 11,260,001 and 11,320,000. The evidence supporting this signal is moderate (\Delta_{i} >= 50 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 2 genes overlap the focal region: AGAP0051691, AGAP0051701.

The following 4 genes are within 50 kbp of the focal region: AGAP005165, AGAP005171 (Tctex1 domain-containing protein 4), AGAP005172, AGAP005173 (Px serine/threonine kinase).

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

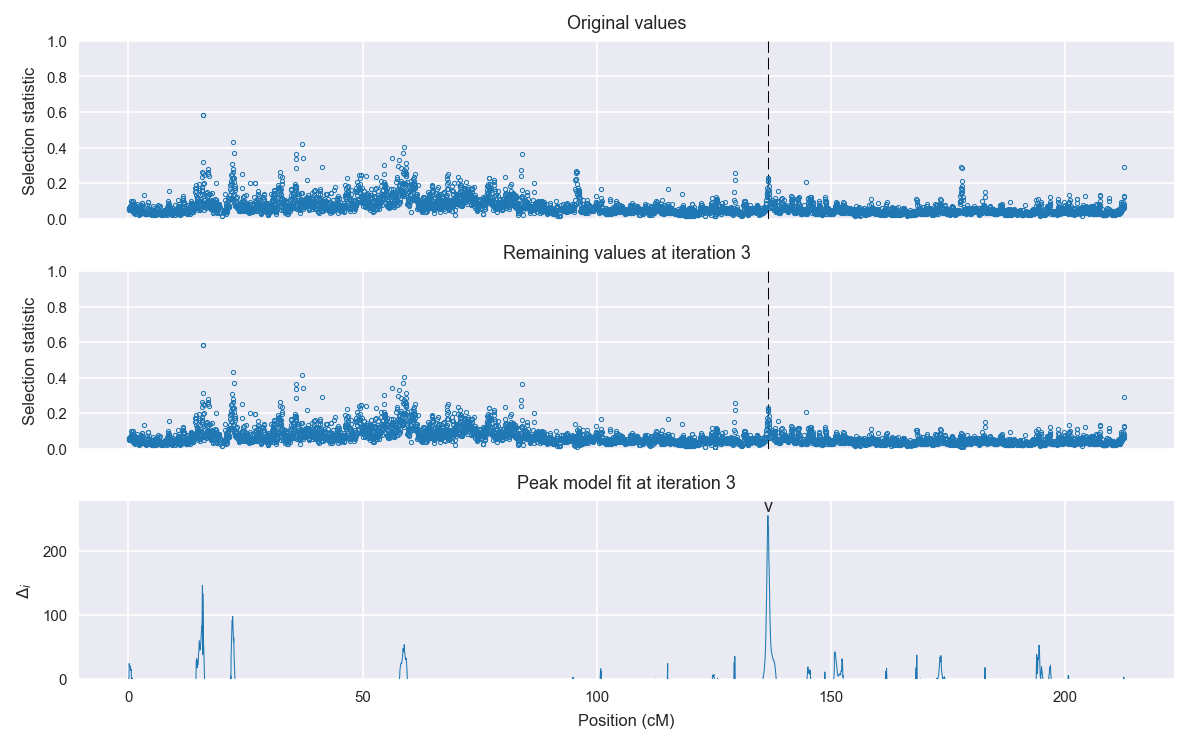

Selection signal in context. @@TODO

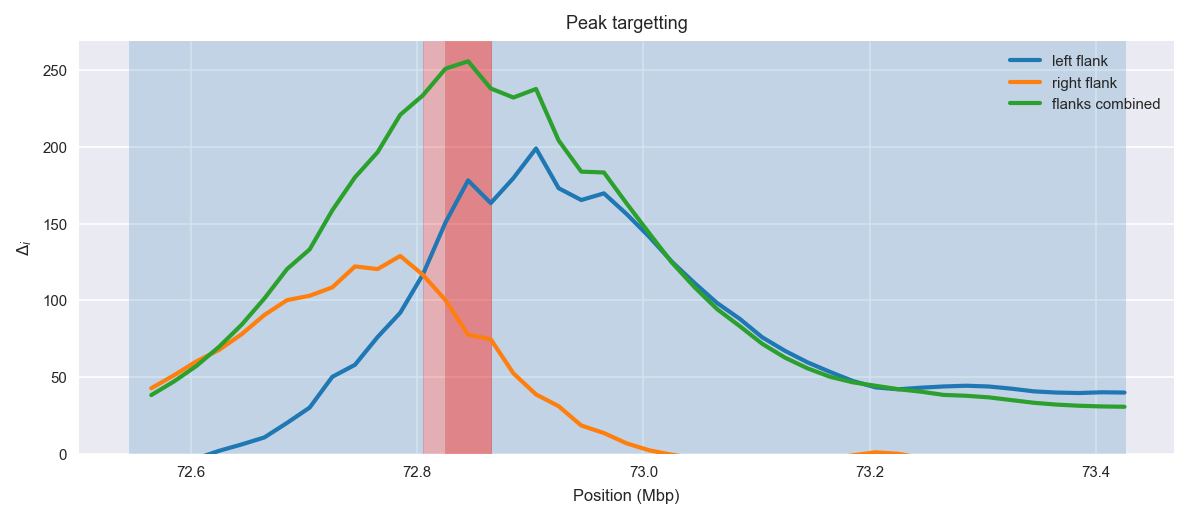

Peak targetting. @@TODO

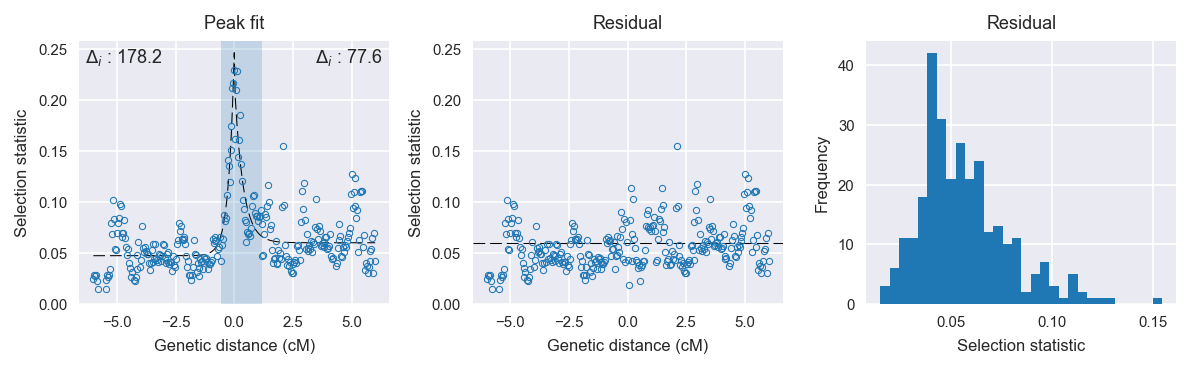

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 27
    # data points      = 142
    # variables        = 3
    chi-square         = 0.041
    reduced chi-square = 0.000
    Akaike info crit   = -1149.788
    Bayesian info crit = -1140.920
[[Variables]]
    amplitude:   0.19911473 +/- 0.011957 (6.01%) (init= 0.5)
    decay:       0.24547305 +/- 0.023704 (9.66%) (init= 0.5)
    c:           0.04729228 +/- 0.001593 (3.37%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.604
    C(decay, c)                  = -0.308

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 43
    # data points      = 148
    # variables        = 3
    chi-square         = 0.088
    reduced chi-square = 0.001
    Akaike info crit   = -1092.727
    Bayesian info crit = -1083.735
[[Variables]]
    amplitude:   0.15999437 +/- 0.018432 (11.52%) (init= 0.5)
    decay:       0.36123172 +/- 0.059938 (16.59%) (init= 0.5)
    c:           0.05999999 +/- 0.005852 (9.75%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.703
    C(decay, c)                  =  0.373

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 141
    # variables        = 1
    chi-square         = 0.141
    reduced chi-square = 0.001
    Akaike info crit   = -971.598
    Bayesian info crit = -968.649
[[Variables]]
    c:   0.05538852 +/- 0.002676 (4.83%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 147
    # variables        = 1
    chi-square         = 0.145
    reduced chi-square = 0.001
    Akaike info crit   = -1015.132
    Bayesian info crit = -1012.141
[[Variables]]
    c:   0.07105564 +/- 0.002602 (3.66%) (init= 0.03)
