H12 / Uganda An. gambiae / Chromosome 2 / #3

This page describes a signal of selection found in the Uganda An. gambiae population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2L between positions 34,040,001 and 34,140,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 20 genes overlap the focal region: AGAP006539 (eupolytin), AGAP006540 (LIM homeobox protein), AGAP006541 (Transcriptional regulators containing a dna-binding hth domain and an aminotransferase domain transcription regulator protein), AGAP006542 (cactin), AGAP006543, AGAP028608, AGAP006546, AGAP006547, AGAP006548 (glycine cleavage system H protein), AGAP006549, AGAP006550, AGAP006551, AGAP006552, AGAP006553, AGAP006554, AGAP006555, AGAP006556, AGAP006557, AGAP006558, AGAP006559.

The following 15 genes are within 50 kbp of the focal region: AGAP006536 (Arrowhead), AGAP006537 (Arrowhead), AGAP006560, AGAP006561, AGAP006562, AGAP006563, AGAP006564, AGAP028429, AGAP006566, AGAP028428, AGAP006567, AGAP006568, AGAP006569 (acetyl-CoA synthetase), AGAP006570 (myo-inositol-1(or 4)-monophosphatase), AGAP006571 (nuclear receptor subfamily 1 group D member 3).

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

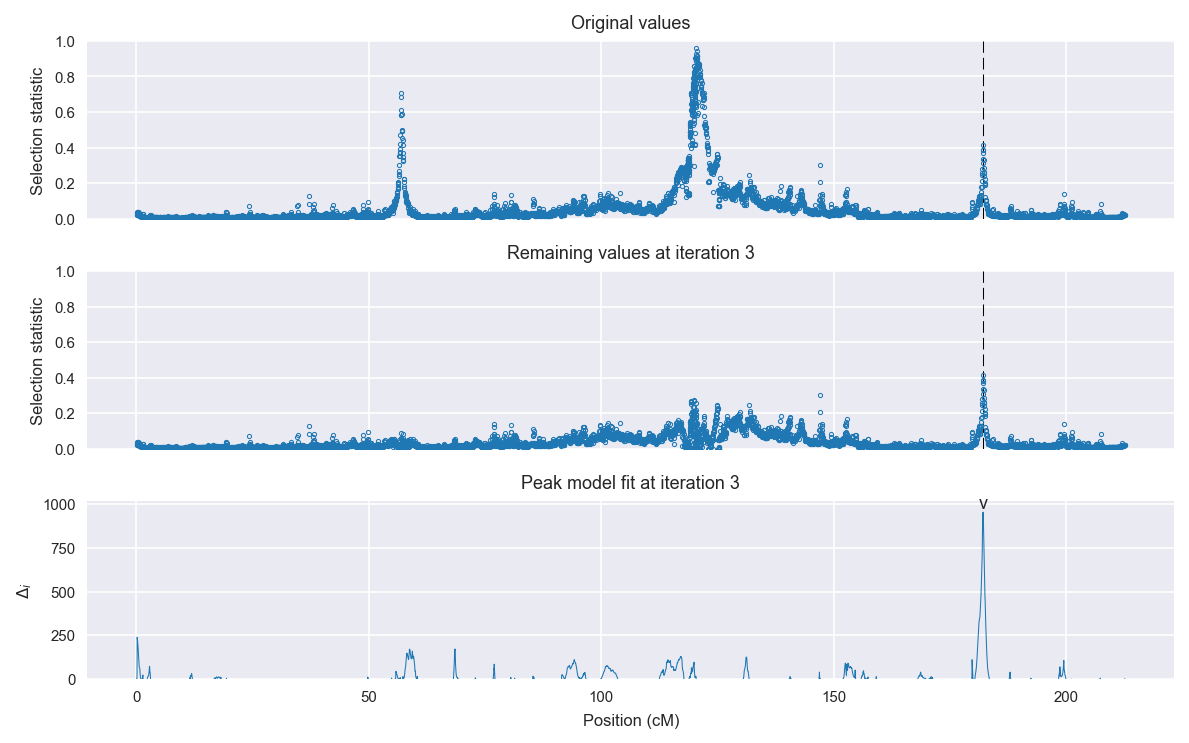

Selection signal in context. @@TODO

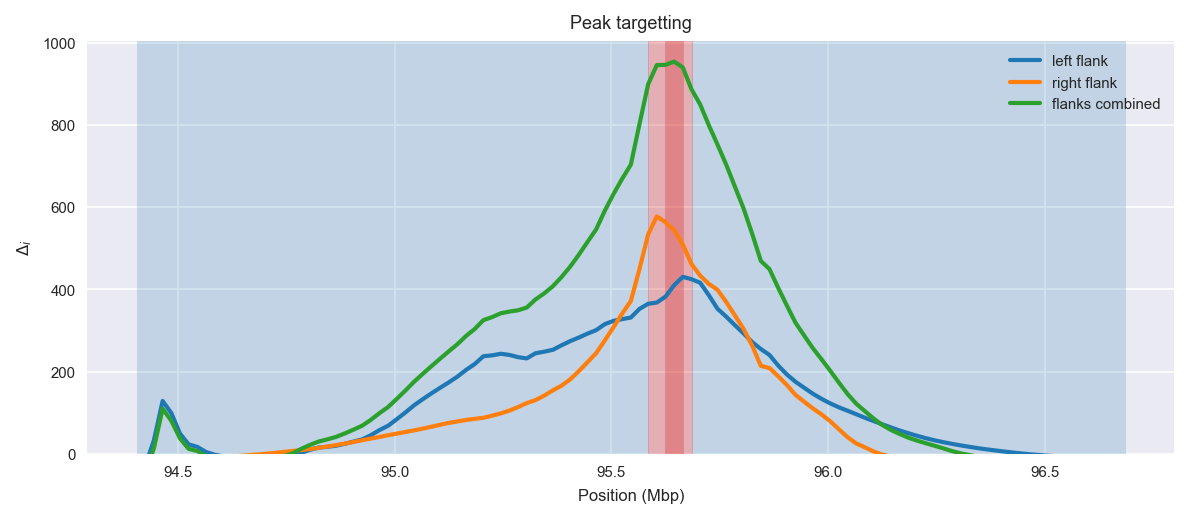

Peak targetting. @@TODO

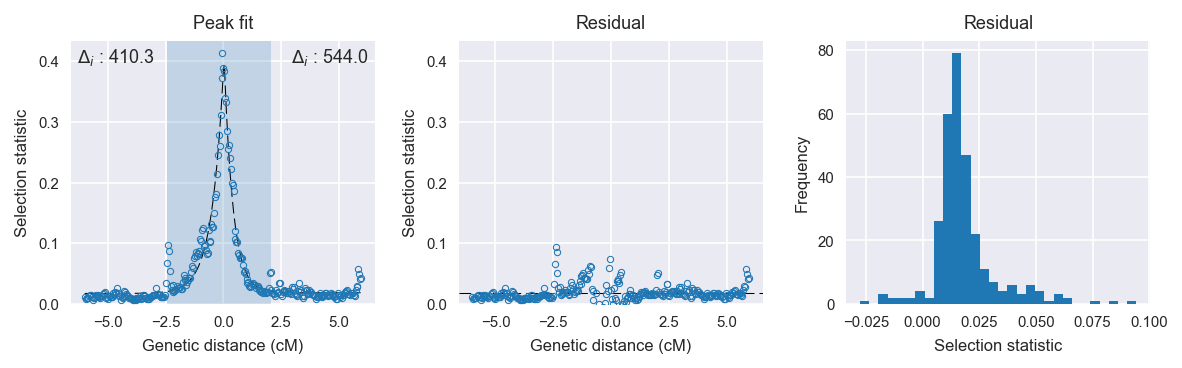

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 27
    # data points      = 151
    # variables        = 3
    chi-square         = 0.046
    reduced chi-square = 0.000
    Akaike info crit   = -1215.868
    Bayesian info crit = -1206.816
[[Variables]]
    amplitude:   0.36775416 +/- 0.009163 (2.49%) (init= 0.5)
    decay:       0.51129363 +/- 0.020977 (4.10%) (init= 0.5)
    c:           0.01722412 +/- 0.001768 (10.27%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.593
    C(decay, c)                  = -0.451

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 23
    # data points      = 149
    # variables        = 3
    chi-square         = 0.015
    reduced chi-square = 0.000
    Akaike info crit   = -1368.419
    Bayesian info crit = -1359.407
[[Variables]]
    amplitude:   0.41706546 +/- 0.007191 (1.72%) (init= 0.5)
    decay:       0.38610396 +/- 0.009678 (2.51%) (init= 0.5)
    c:           0.01843425 +/- 0.000955 (5.18%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.697
    C(decay, c)                  = -0.386

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 150
    # variables        = 1
    chi-square         = 0.689
    reduced chi-square = 0.005
    Akaike info crit   = -805.529
    Bayesian info crit = -802.518
[[Variables]]
    c:   0.04716467 +/- 0.005551 (11.77%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 148
    # variables        = 1
    chi-square         = 0.556
    reduced chi-square = 0.004
    Akaike info crit   = -824.442
    Bayesian info crit = -821.445
[[Variables]]
    c:   0.04178215 +/- 0.005055 (12.10%) (init= 0.03)
