H12 / Burkina Faso An. coluzzii / Chromosome 2 / #3

This page describes a signal of selection found in the Burkina Faso An. coluzzii population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2R between positions 28,420,001 and 28,560,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 17 genes overlap the focal region: AGAP002859 (solute carrier family 8 (sodium/calcium exchanger)), AGAP0028621 (CYP6AA1 - cytochrome P450), AGAP0131281 (CYP6AA2 - cytochrome P450), AGAP0028631 (COEAE6O - carboxylesterase alpha esterase), AGAP0028641 (CYP6P15P - cytochrome P450), AGAP0028651 (CYP6P3 - cytochrome P450), AGAP0028661 (CYP6P5 - cytochrome P450), AGAP0028671 (CYP6P4 - cytochrome P450), AGAP0028681 (CYP6P1 - cytochrome P450), AGAP0028691 (CYP6P2 - cytochrome P450), AGAP0028701 (CYP6AD1 - cytochrome P450), AGAP013202, AGAP000586, AGAP002872 (lipase), AGAP002873, AGAP013069, AGAP002874.

The following 8 genes are within 50 kbp of the focal region: AGAP002858 (Sodium/potassium-transporting ATPase subunit alpha), AGAP002875 (protein HEXIM1/2), AGAP013244 (adenosine deaminase, tRNA-specific 2, TAD2 homolog), AGAP002876 (single-strand selective monofunctional uracil DNA glycosylase), AGAP002877 (Tetratricopeptide repeat protein 30 homolog), AGAP002878 (Cystatin-like protein), AGAP002879 (cathepsin F), AGAP002880 (COP9 signalosome complex subunit 5).

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Focus Score (Left | Right)
H12 / Uganda An. gambiae / Chromosome 2 / #1 2R:28,420,001-28,520,000 1230 (582 | 647)
H12 / Cameroon An. gambiae / Chromosome 2 / #1 2R:28,400,001-28,440,000 910 (469 | 441)
H12 / Guinea An. gambiae / Chromosome 2 / #2 2R:28,420,001-28,540,000 848 (493 | 354)
H12 / Burkina Faso An. gambiae / Chromosome 2 / #3 2R:28,440,001-28,520,000 753 (371 | 382)

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

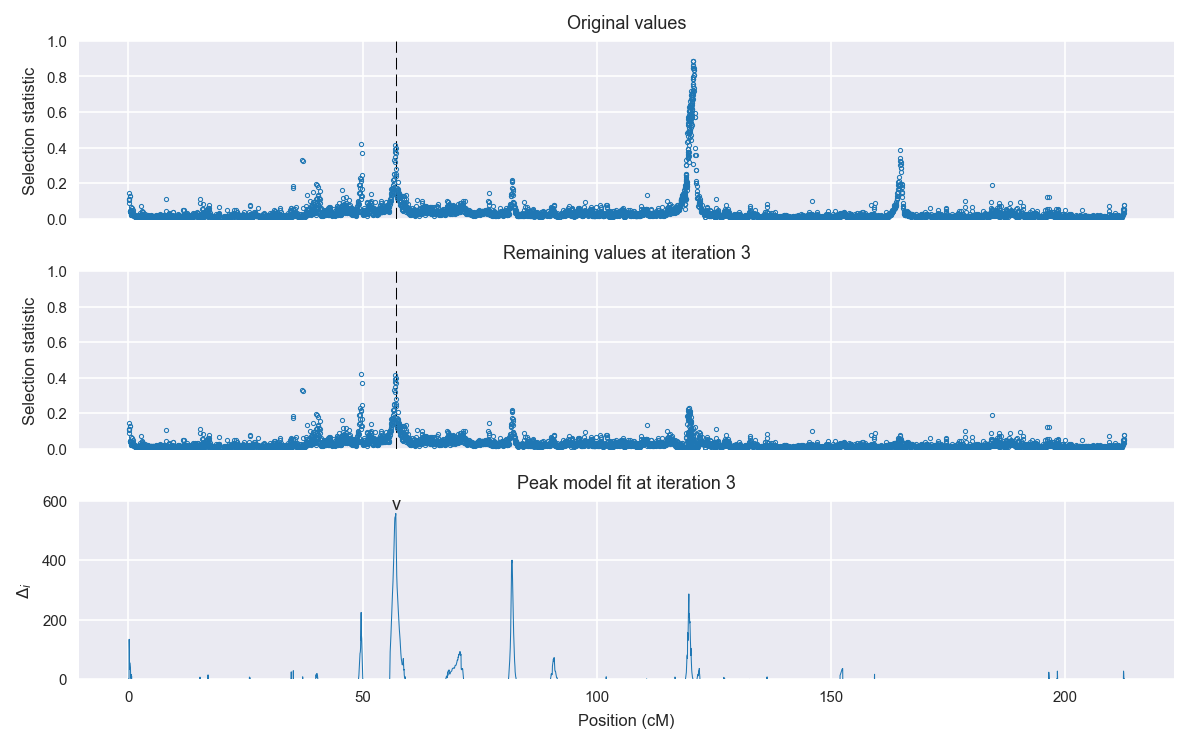

Selection signal in context. @@TODO

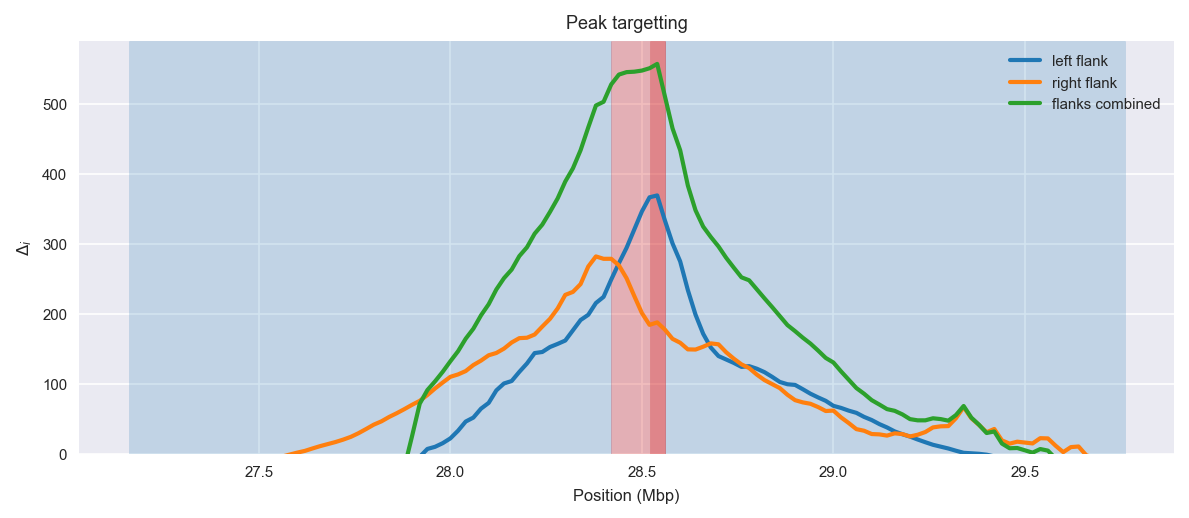

Peak targetting. @@TODO

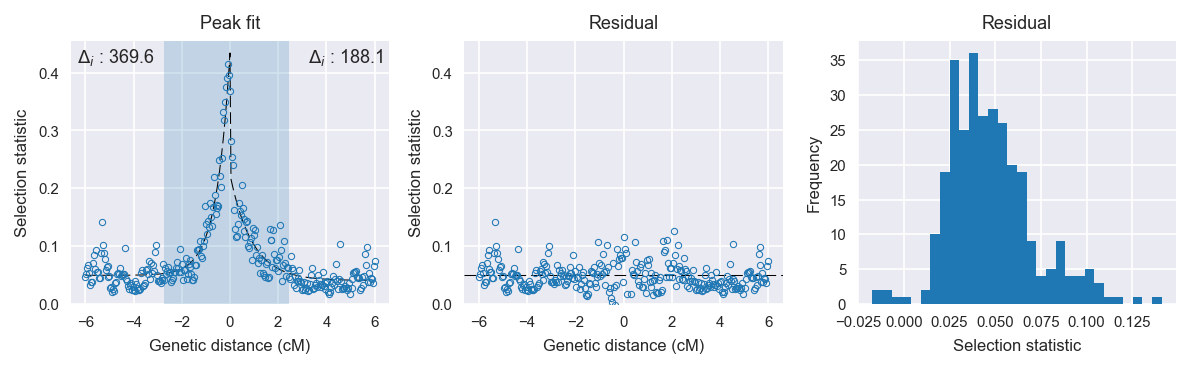

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 19
    # data points      = 151
    # variables        = 3
    chi-square         = 0.078
    reduced chi-square = 0.001
    Akaike info crit   = -1136.862
    Bayesian info crit = -1127.811
[[Variables]]
    amplitude:   0.38458588 +/- 0.011342 (2.95%) (init= 0.5)
    decay:       0.57207676 +/- 0.028199 (4.93%) (init= 0.5)
    c:           0.04941991 +/- 0.002370 (4.80%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.584
    C(decay, c)                  = -0.483

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 27
    # data points      = 149
    # variables        = 3
    chi-square         = 0.085
    reduced chi-square = 0.001
    Akaike info crit   = -1106.972
    Bayesian info crit = -1097.960
[[Variables]]
    amplitude:   0.18340593 +/- 0.010569 (5.76%) (init= 0.5)
    decay:       0.91145911 +/- 0.095539 (10.48%) (init= 0.5)
    c:           0.04042973 +/- 0.003116 (7.71%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.649
    C(amplitude, decay)          = -0.559

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 150
    # variables        = 1
    chi-square         = 0.889
    reduced chi-square = 0.006
    Akaike info crit   = -767.277
    Bayesian info crit = -764.266
[[Variables]]
    c:   0.08495204 +/- 0.006306 (7.42%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 148
    # variables        = 1
    chi-square         = 0.294
    reduced chi-square = 0.002
    Akaike info crit   = -918.904
    Bayesian info crit = -915.907
[[Variables]]
    c:   0.06637828 +/- 0.003674 (5.54%) (init= 0.03)
