H12 / Cameroon An. gambiae / Chromosome 2 / #1

This page describes a signal of selection found in the Cameroon An. gambiae population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2R between positions 28,400,001 and 28,440,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

Gene AGAP002859 (solute carrier family 8 (sodium/calcium exchanger)) overlaps the focal region.

The following 5 genes are within 50 kbp of the focal region: AGAP002858 (Sodium/potassium-transporting ATPase subunit alpha), AGAP0028621 (CYP6AA1 - cytochrome P450), AGAP0131281 (CYP6AA2 - cytochrome P450), AGAP0028631 (COEAE6O - carboxylesterase alpha esterase), AGAP0028641 (CYP6P15P - cytochrome P450).

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Focus Score (Left | Right)
H12 / Uganda An. gambiae / Chromosome 2 / #1 2R:28,420,001-28,520,000 1230 (582 | 647)
H12 / Guinea An. gambiae / Chromosome 2 / #2 2R:28,420,001-28,540,000 848 (493 | 354)
H12 / Burkina Faso An. coluzzii / Chromosome 2 / #3 2R:28,420,001-28,560,000 557 (369 | 188)

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

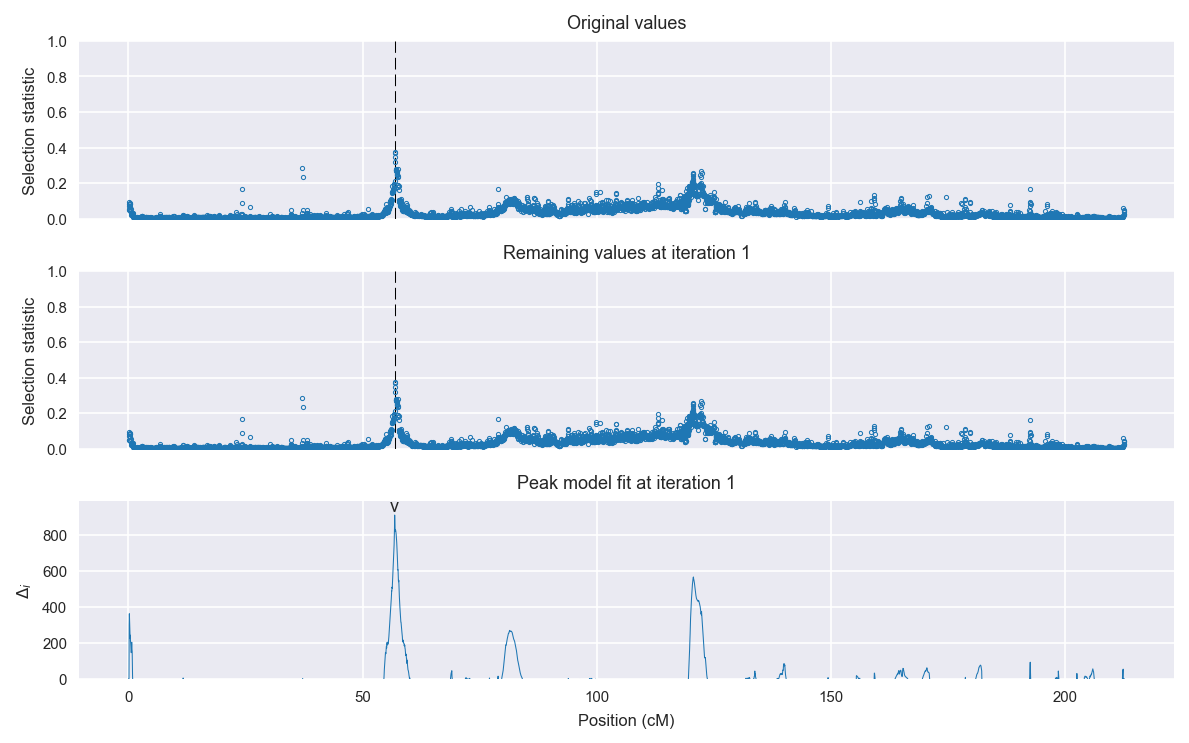

Selection signal in context. @@TODO

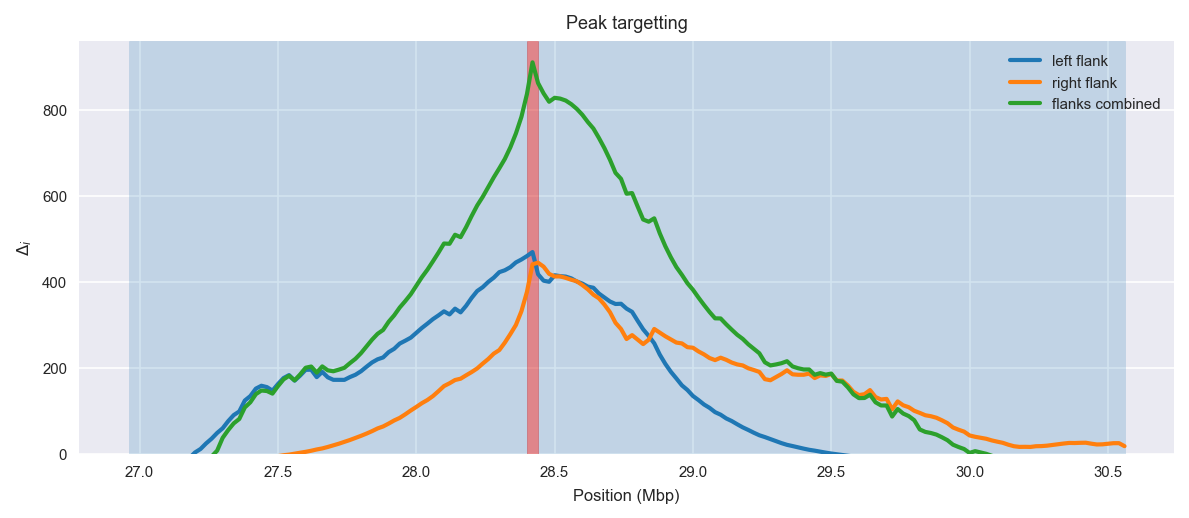

Peak targetting. @@TODO

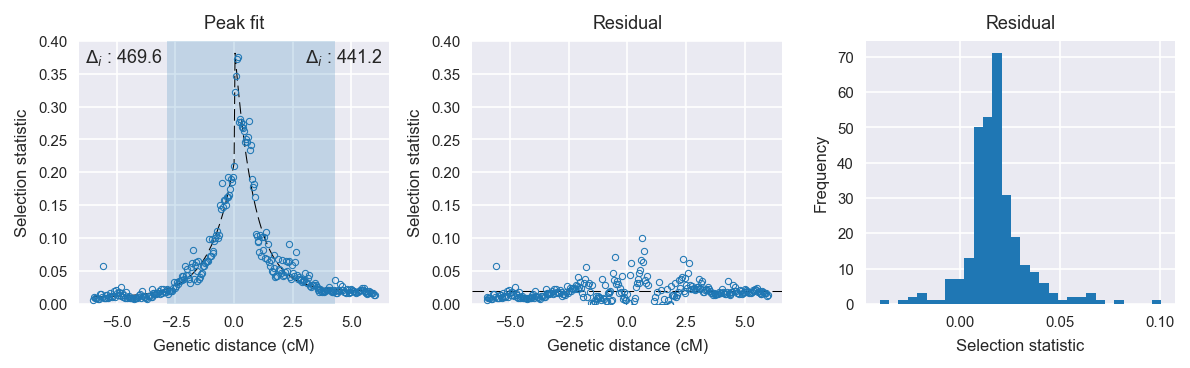

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 23
    # data points      = 151
    # variables        = 3
    chi-square         = 0.016
    reduced chi-square = 0.000
    Akaike info crit   = -1375.354
    Bayesian info crit = -1366.302
[[Variables]]
    amplitude:   0.20374244 +/- 0.003987 (1.96%) (init= 0.5)
    decay:       1.01323923 +/- 0.039297 (3.88%) (init= 0.5)
    c:           0.01031565 +/- 0.001428 (13.85%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.686
    C(amplitude, decay)          = -0.471

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 23
    # data points      = 149
    # variables        = 3
    chi-square         = 0.052
    reduced chi-square = 0.000
    Akaike info crit   = -1179.627
    Bayesian info crit = -1170.615
[[Variables]]
    amplitude:   0.37900901 +/- 0.008649 (2.28%) (init= 0.5)
    decay:       0.84199286 +/- 0.033781 (4.01%) (init= 0.5)
    c:           0.01961050 +/- 0.002327 (11.87%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.619
    C(amplitude, decay)          = -0.580

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 150
    # variables        = 1
    chi-square         = 0.353
    reduced chi-square = 0.002
    Akaike info crit   = -905.800
    Bayesian info crit = -902.790
[[Variables]]
    c:   0.04398483 +/- 0.003974 (9.04%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 148
    # variables        = 1
    chi-square         = 0.994
    reduced chi-square = 0.007
    Akaike info crit   = -738.440
    Bayesian info crit = -735.442
[[Variables]]
    c:   0.06979709 +/- 0.006760 (9.69%) (init= 0.03)
