H12 / Burkina Faso An. gambiae / Chromosome 2 / #1

This page describes a signal of selection found in the Burkina Faso An. gambiae population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2L between positions 2,420,001 and 2,720,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 13 genes overlap the focal region: AGAP0047072 (para - voltage-gated sodium channel), AGAP004708 (arginyl-tRNA synthetase), AGAP004709 (mRpL18 - 39S ribosomal protein L18, mitochondrial), AGAP0047101 (ubiquinol-cytochrome c reductase subunit 9), AGAP004711 (ATP-dependent RNA helicase DDX41), AGAP004712, AGAP004713, AGAP004714, AGAP0047151 (Pyruvate dehydrogenase phosphatase regulatory subunit, mitochondrial), AGAP0047163 (Gr57 - gustatory receptor 57), AGAP004717, AGAP004718, AGAP004719 (CLIPC9 - CLIP-domain serine protease).

The following 4 genes are within 50 kbp of the focal region: AGAP004720, AGAP004721 (N-acetylglucosamine-6-sulfatase), AGAP004722, AGAP004723 (chromobox protein homolog 1).

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Focus Score (Left | Right)
H12 / Burkina Faso An. coluzzii / Chromosome 2 / #1 2L:2,520,001-2,900,000 1399 (800 | 599)
H12 / Guinea An. gambiae / Chromosome 2 / #1 2L:1,760,001-2,700,000 1256 (673 | 583)
H12 / Uganda An. gambiae / Chromosome 2 / #2 2L:2,520,001-3,120,000 982 (573 | 409)
H12 / Cameroon An. gambiae / Chromosome 2 / #2 2L:2,420,001-2,920,000 566 (461 | 104)
H12 / Gabon An. gambiae / Chromosome 2 / #2 2L:2,600,001-2,640,000 274 (223 | 51)

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

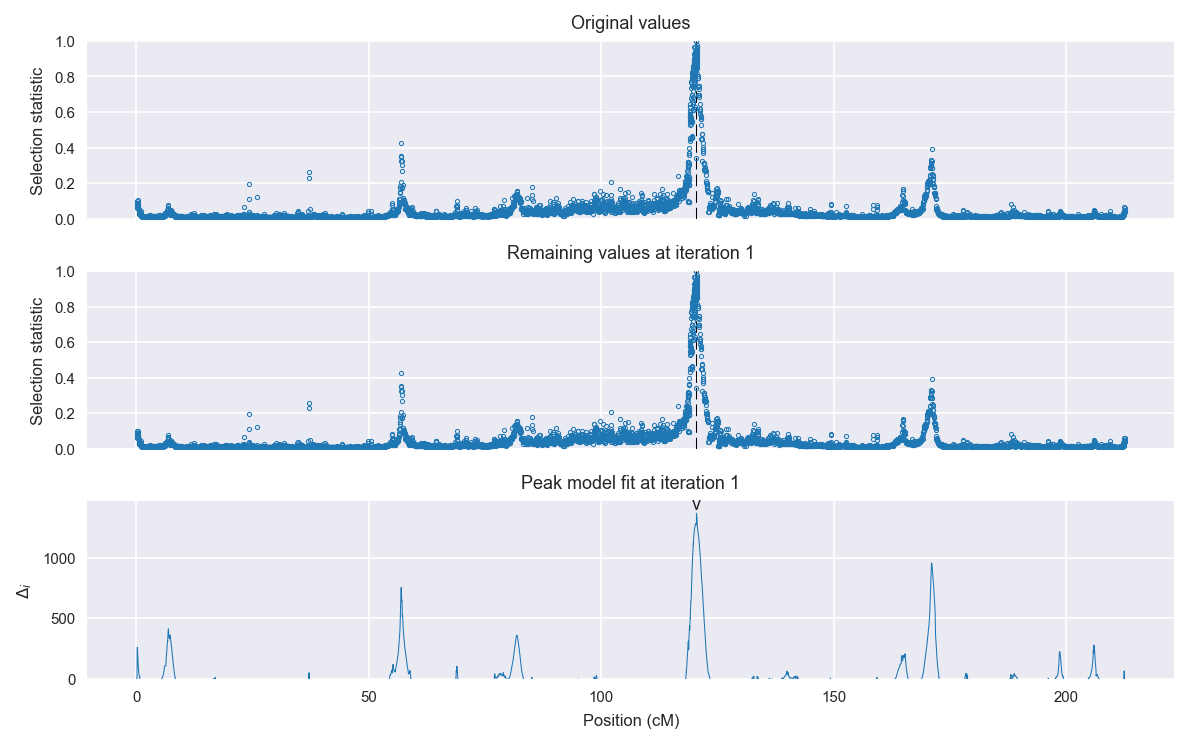

Selection signal in context. @@TODO

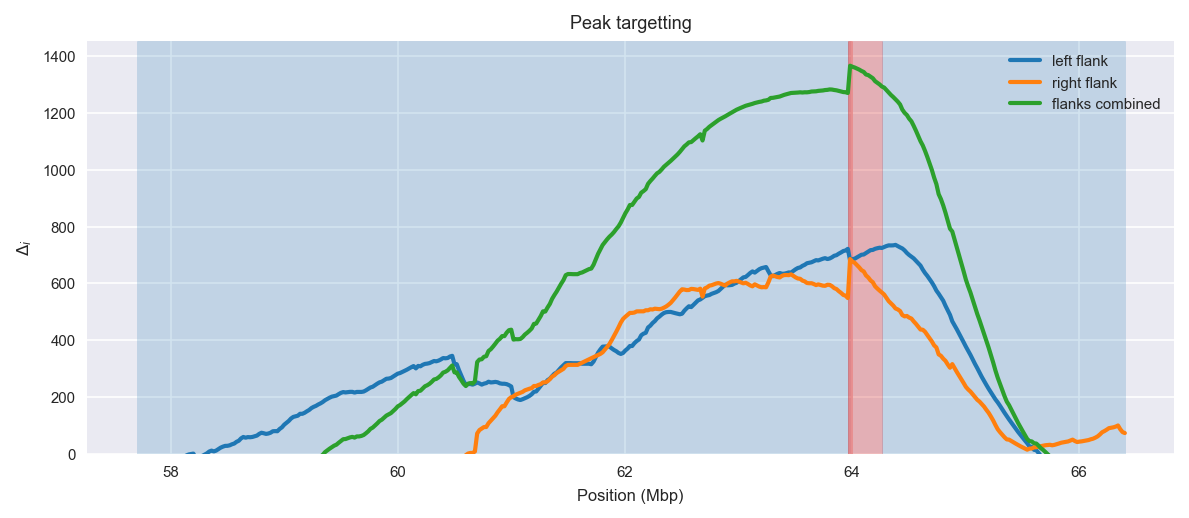

Peak targetting. @@TODO

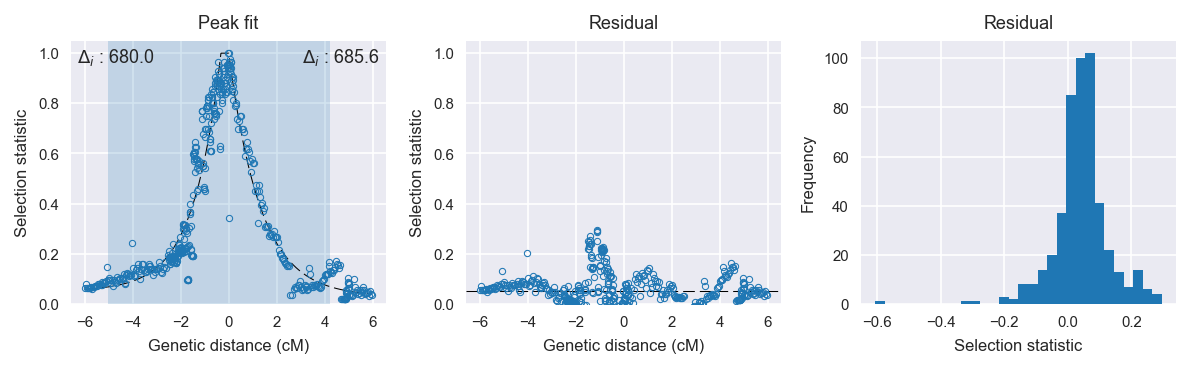

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 75
    # data points      = 310
    # variables        = 3
    chi-square         = 3.287
    reduced chi-square = 0.011
    Akaike info crit   = -1403.479
    Bayesian info crit = -1392.269
[[Variables]]
    amplitude:   1.26033111 +/- 0.037991 (3.01%) (init= 0.5)
    decay:       1.15507536 +/- 0.067225 (5.82%) (init= 0.5)
    c:           0.05163914 +/- 0.015908 (30.81%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.797
    C(amplitude, decay)          = -0.628
    C(amplitude, c)              =  0.141

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 50
    # data points      = 179
    # variables        = 3
    chi-square         = 0.342
    reduced chi-square = 0.002
    Akaike info crit   = -1114.752
    Bayesian info crit = -1105.190
[[Variables]]
    amplitude:   0.96862431 +/- 0.010744 (1.11%) (init= 0.5)
    decay:       1.31892343 +/- 0.040764 (3.09%) (init= 0.5)
    c:           0.02932022 +/- 0.006776 (23.11%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.773
    C(amplitude, c)              = -0.327
    C(amplitude, decay)          = -0.101

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 308
    # variables        = 1
    chi-square         = 29.218
    reduced chi-square = 0.095
    Akaike info crit   = -723.440
    Bayesian info crit = -719.710
[[Variables]]
    c:   0.41346148 +/- 0.017578 (4.25%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 178
    # variables        = 1
    chi-square         = 15.796
    reduced chi-square = 0.089
    Akaike info crit   = -429.123
    Bayesian info crit = -425.941
[[Variables]]
    c:   0.27525521 +/- 0.022391 (8.13%) (init= 0.03)
