H12 / Burkina Faso An. gambiae / Chromosome 2 / #5

This page describes a signal of selection found in the Burkina Faso An. gambiae population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2L between positions 25,380,001 and 25,420,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

Gene AGAP0060282 (Rdl - GABA-gated chloride channel subunit) overlaps the focal region.

The following 6 genes are within 50 kbp of the focal region: AGAP006029, AGAP006030 (mfrn - mitoferrin), AGAP006031 (nuclear pore complex protein Nup54), AGAP006032, AGAP006033, AGAP006034.

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Focus Score (Left | Right)
H12 / Burkina Faso An. coluzzii / Chromosome 2 / #2 2L:25,400,001-25,520,000 919 (426 | 492)
H12 / Angola An. coluzzii / Chromosome 2 / #3 2L:25,380,001-25,460,000 392 (242 | 150)

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

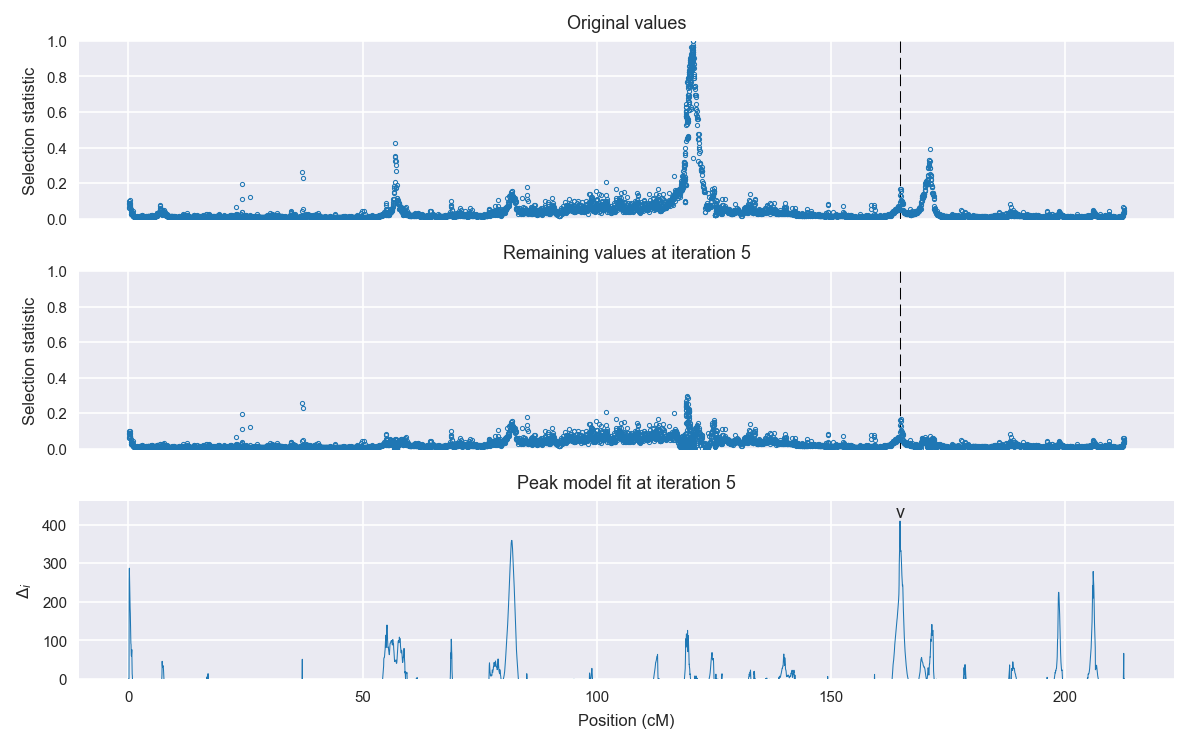

Selection signal in context. @@TODO

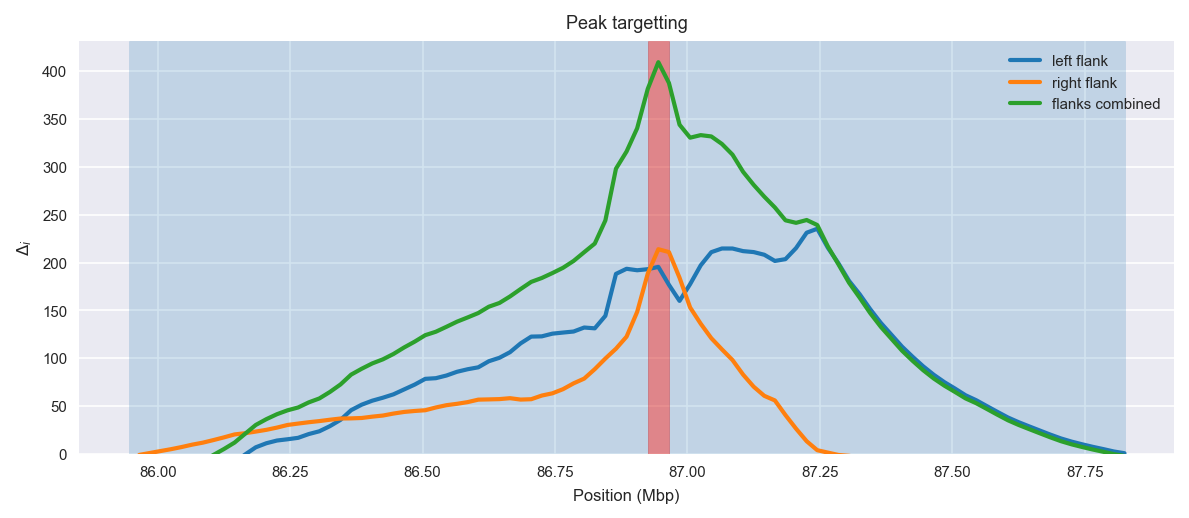

Peak targetting. @@TODO

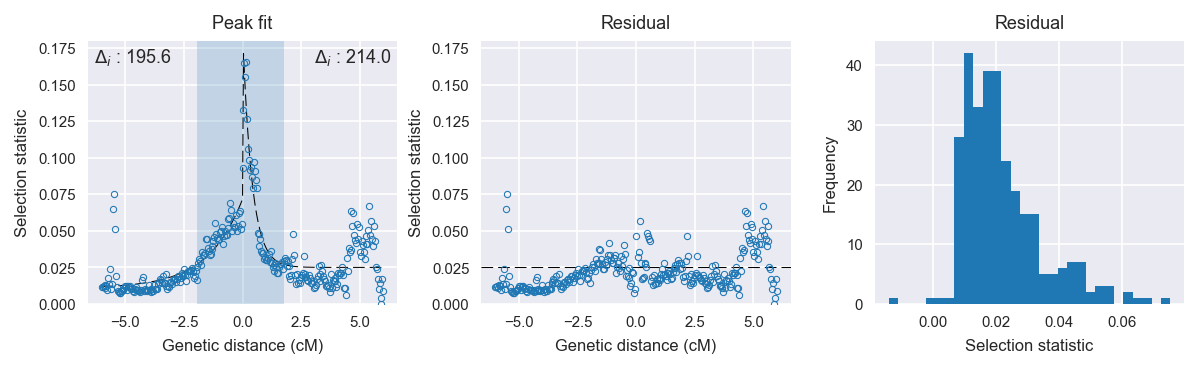

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 43
    # data points      = 151
    # variables        = 3
    chi-square         = 0.013
    reduced chi-square = 0.000
    Akaike info crit   = -1408.830
    Bayesian info crit = -1399.778
[[Variables]]
    amplitude:   0.06098421 +/- 0.003047 (5.00%) (init= 0.5)
    decay:       1.47367940 +/- 0.185031 (12.56%) (init= 0.5)
    c:           0.01074672 +/- 0.001847 (17.19%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.825
    C(amplitude, decay)          = -0.249
    C(amplitude, c)              = -0.171

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 23
    # data points      = 150
    # variables        = 3
    chi-square         = 0.028
    reduced chi-square = 0.000
    Akaike info crit   = -1281.413
    Bayesian info crit = -1272.381
[[Variables]]
    amplitude:   0.16178903 +/- 0.009682 (5.98%) (init= 0.5)
    decay:       0.40116322 +/- 0.035087 (8.75%) (init= 0.5)
    c:           0.02498262 +/- 0.001319 (5.28%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.693
    C(decay, c)                  = -0.393

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 150
    # variables        = 1
    chi-square         = 0.045
    reduced chi-square = 0.000
    Akaike info crit   = -1213.263
    Bayesian info crit = -1210.252
[[Variables]]
    c:   0.02512929 +/- 0.001426 (5.67%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 149
    # variables        = 1
    chi-square         = 0.114
    reduced chi-square = 0.001
    Akaike info crit   = -1067.374
    Bayesian info crit = -1064.370
[[Variables]]
    c:   0.03439744 +/- 0.002271 (6.61%) (init= 0.03)

Comments
