H12 / Burkina Faso An. gambiae / Chromosome 2 / #6

This page describes a signal of selection found in the Burkina Faso An. gambiae population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 2R between positions 40,820,001 and 41,000,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 13 genes overlap the focal region: AGAP003638, AGAP003639 (Prolylcarboxypeptidase), AGAP0036401 (SP8905), AGAP0036411 (SP8907), AGAP0036421 (SP8898), AGAP003643 (ubiquitin carboxyl-terminal hydrolase 34), AGAP003644 (mRpS11 - 28S ribosomal protein S11, mitochondrial), AGAP003645 (kelch-like protein 19), AGAP013307, AGAP003646, AGAP003647, AGAP003648 (DNA-directed RNA polymerase II subunit RPB2), AGAP003649.

The following 6 genes are within 50 kbp of the focal region: AGAP003632 (U3 small nucleolar RNA-associated protein 14), AGAP003633, AGAP003635, AGAP0036361 (inositol oxygenase), AGAP003650 (translation initiation factor eIF-2B subunit alpha), AGAP003651 (Tyrosine-protein kinase Fes/Fps).

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Focus Score (Left | Right)
H12 / Burkina Faso An. coluzzii / Chromosome 2 / #4 2R:40,880,001-40,980,000 400 (185 | 214)
H12 / Cameroon An. gambiae / Chromosome 2 / #3 2R:40,600,001-40,980,000 269 (195 | 74)

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

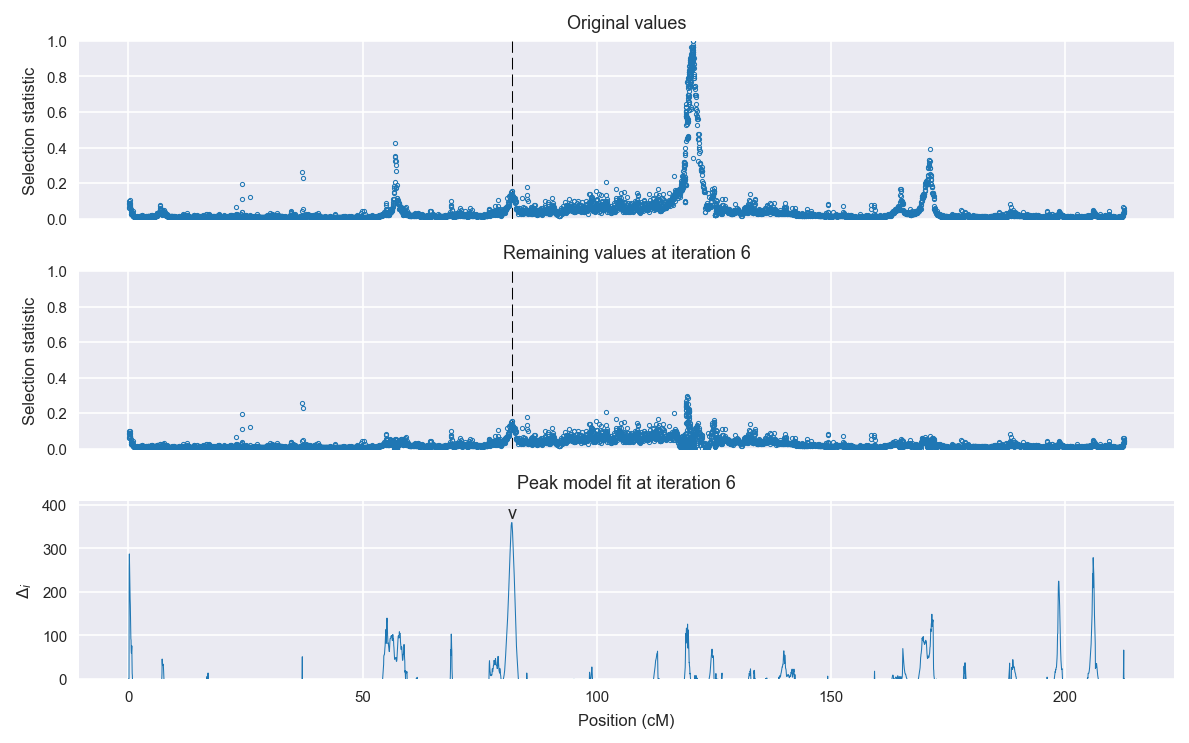

Selection signal in context. @@TODO

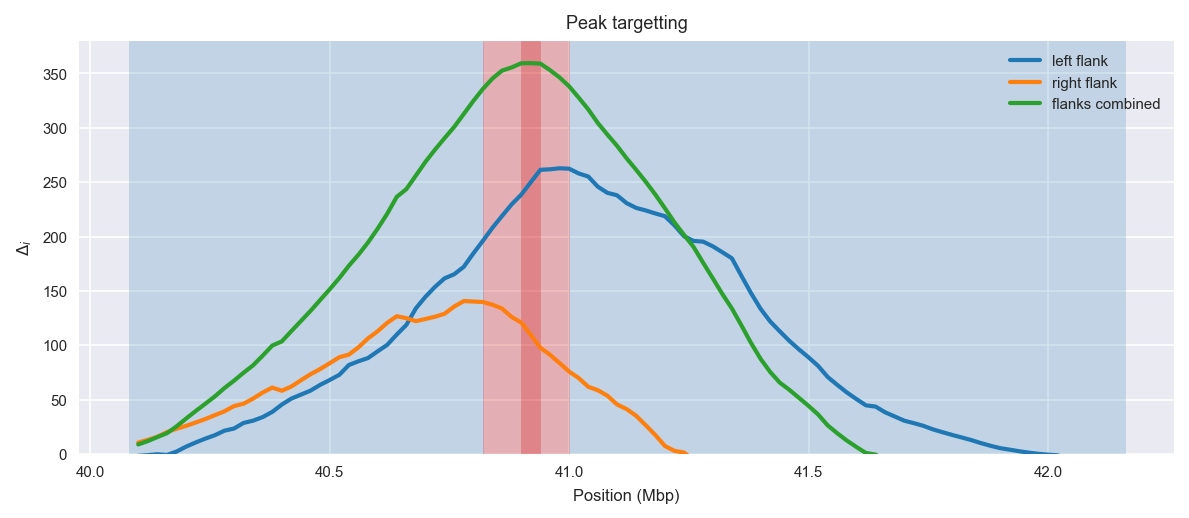

Peak targetting. @@TODO

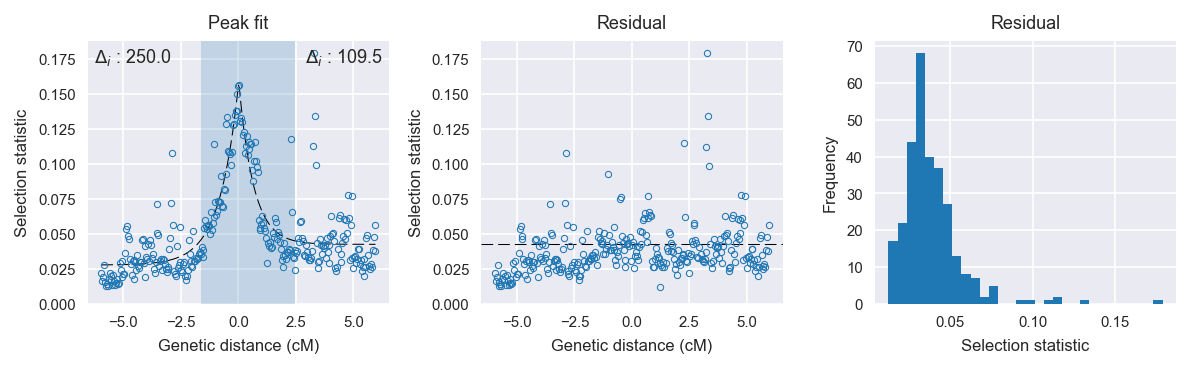

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 23
    # data points      = 150
    # variables        = 3
    chi-square         = 0.028
    reduced chi-square = 0.000
    Akaike info crit   = -1279.995
    Bayesian info crit = -1270.963
[[Variables]]
    amplitude:   0.12859787 +/- 0.005824 (4.53%) (init= 0.5)
    decay:       0.82830421 +/- 0.068595 (8.28%) (init= 0.5)
    c:           0.02779849 +/- 0.001682 (6.05%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(decay, c)                  = -0.611
    C(amplitude, decay)          = -0.526

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 27
    # data points      = 147
    # variables        = 3
    chi-square         = 0.064
    reduced chi-square = 0.000
    Akaike info crit   = -1131.103
    Bayesian info crit = -1122.131
[[Variables]]
    amplitude:   0.11918115 +/- 0.011344 (9.52%) (init= 0.5)
    decay:       0.63462767 +/- 0.097183 (15.31%) (init= 0.5)
    c:           0.04258928 +/- 0.002291 (5.38%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.638
    C(decay, c)                  = -0.515

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 149
    # variables        = 1
    chi-square         = 0.146
    reduced chi-square = 0.001
    Akaike info crit   = -1030.029
    Bayesian info crit = -1027.025
[[Variables]]
    c:   0.04523168 +/- 0.002575 (5.69%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 146
    # variables        = 1
    chi-square         = 0.132
    reduced chi-square = 0.001
    Akaike info crit   = -1021.620
    Bayesian info crit = -1018.636
[[Variables]]
    c:   0.05410447 +/- 0.002493 (4.61%) (init= 0.03)

Comments
