H12 / Cameroon An. gambiae / Chromosome 3 / #1

This page describes a signal of selection found in the Cameroon An. gambiae population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 3R between positions 28,540,001 and 28,640,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 15 genes overlap the focal region: AGAP009185, AGAP0091871 (Indanol dehydrogenase), AGAP009188 (solute carrier family 39 (zinc transporter), member 9), AGAP009189, AGAP0091901 (GSTE8 - glutathione S-transferase epsilon class 8), AGAP0091911 (GSTE6 - glutathione S-transferase epsilon class 6), AGAP0091921 (GSTE5 - glutathione S-transferase epsilon class 5), AGAP0091931 (GSTE4 - glutathione S-transferase epsilon class 4), AGAP0091941 (GSTE2 - glutathione S-transferase epsilon class 2), AGAP0091951 (GSTE1 - glutathione S-transferase epsilon class 1), AGAP0091961 (GSTE7 - glutathione S-transferase epsilon class 7), AGAP0091971 (GSTE3 - glutathione S-transferase epsilon class 3), AGAP009198, AGAP009199 (palmitoyltransferase ZDHHC24), AGAP009200 (collagen type IV alpha).

The following 8 genes are within 50 kbp of the focal region: AGAP009184, AGAP009201 (collagen type IV alpha), AGAP009202 (selenoprotein T), AGAP028058, AGAP009203 (SPRY domain-containing SOCS box protein 3), AGAP009204 (eIF3h - Eukaryotic translation initiation factor 3 subunit H), AGAP009205 (ankyrin repeat domain 39), AGAP009206.

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Focus Score (Left | Right)
H12 / Burkina Faso An. gambiae / Chromosome 3 / #1 3R:28,480,001-28,620,000 818 (500 | 318)
H12 / Guinea An. gambiae / Chromosome 3 / #1 3R:28,480,001-28,600,000 755 (461 | 294)
H12 / Uganda An. gambiae / Chromosome 3 / #1 3R:28,560,001-28,620,000 750 (426 | 323)
H12 / Burkina Faso An. coluzzii / Chromosome 3 / #1 3R:28,520,001-28,620,000 676 (393 | 283)

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

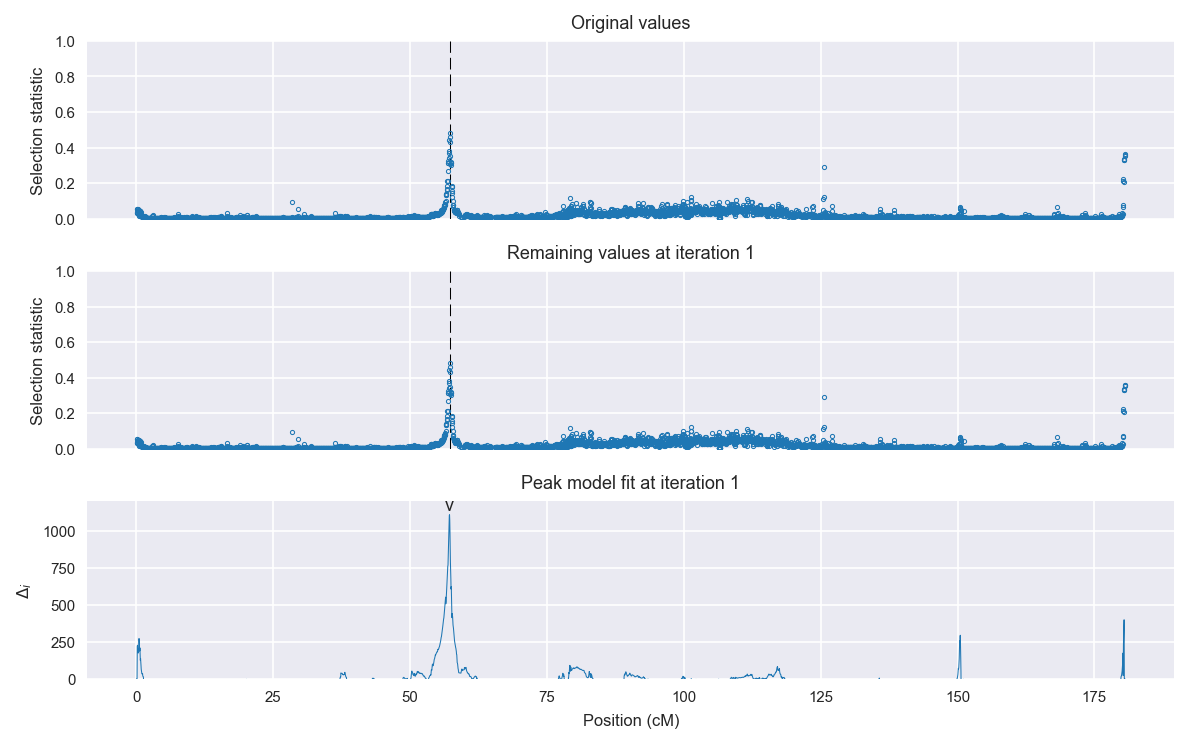

Selection signal in context. @@TODO

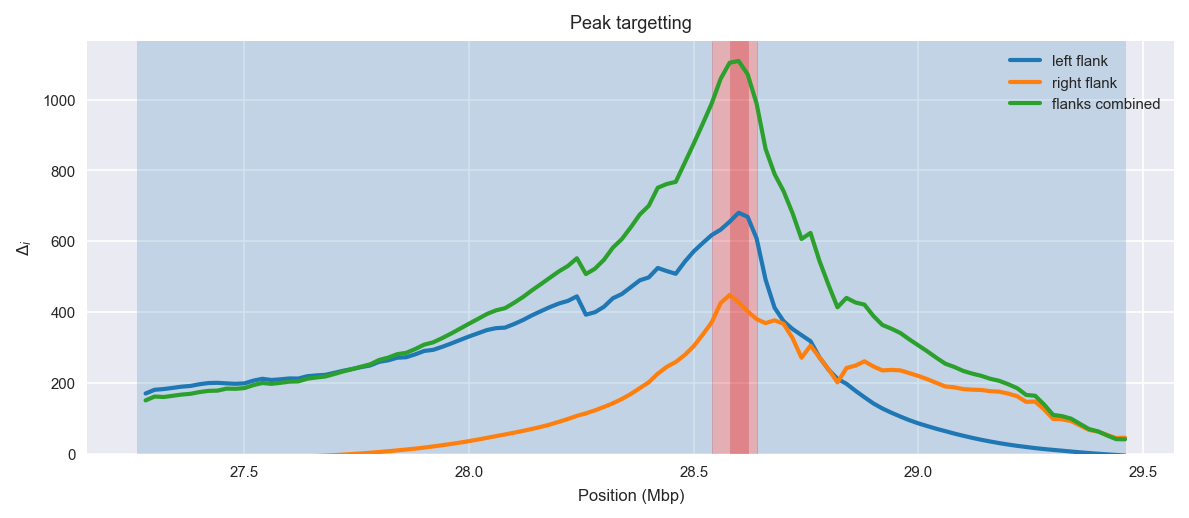

Peak targetting. @@TODO

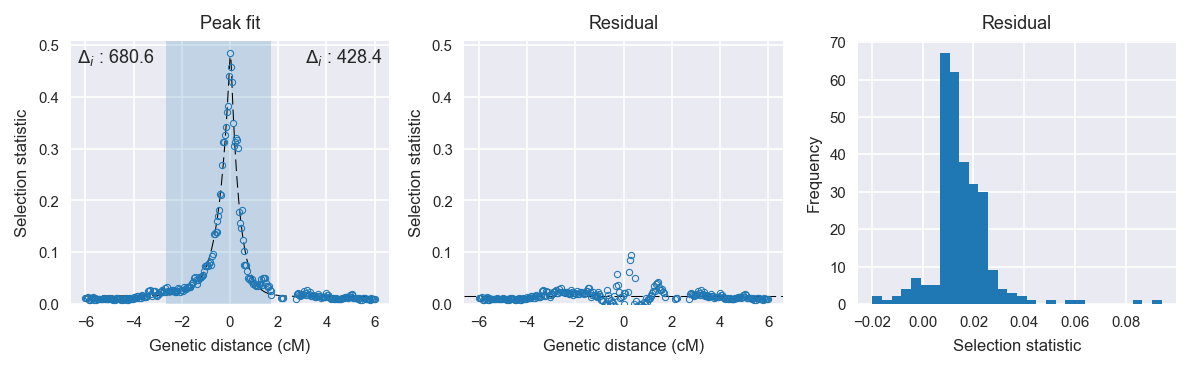

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 19
    # data points      = 151
    # variables        = 3
    chi-square         = 0.011
    reduced chi-square = 0.000
    Akaike info crit   = -1433.243
    Bayesian info crit = -1424.191
[[Variables]]
    amplitude:   0.46391822 +/- 0.004632 (1.00%) (init= 0.5)
    decay:       0.46764246 +/- 0.007619 (1.63%) (init= 0.5)
    c:           0.01531472 +/- 0.000843 (5.50%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.599
    C(decay, c)                  = -0.428

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 19
    # data points      = 128
    # variables        = 3
    chi-square         = 0.027
    reduced chi-square = 0.000
    Akaike info crit   = -1077.244
    Bayesian info crit = -1068.687
[[Variables]]
    amplitude:   0.51297639 +/- 0.011116 (2.17%) (init= 0.5)
    decay:       0.35470785 +/- 0.011089 (3.13%) (init= 0.5)
    c:           0.01430139 +/- 0.001509 (10.56%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.698
    C(decay, c)                  = -0.375

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 150
    # variables        = 1
    chi-square         = 0.980
    reduced chi-square = 0.007
    Akaike info crit   = -752.657
    Bayesian info crit = -749.646
[[Variables]]
    c:   0.04991149 +/- 0.006621 (13.27%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 127
    # variables        = 1
    chi-square         = 0.756
    reduced chi-square = 0.006
    Akaike info crit   = -648.816
    Bayesian info crit = -645.972
[[Variables]]
    c:   0.04442964 +/- 0.006871 (15.47%) (init= 0.03)
