H12 / Uganda An. gambiae / Chromosome 3 / #4

This page describes a signal of selection found in the Uganda An. gambiae population using the H12 (Garud et al. 20XX) statistic.The focus of this signal is on chromosome arm 3R between positions 18,700,001 and 18,820,000. The evidence supporting this signal is moderate (\Delta_{i} >= 50 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

Gene AGAP008824 overlaps the focal region.

The following 2 genes are within 50 kbp of the focal region: AGAP028559, AGAP008823.

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Focus Score (Left | Right)
H12 / Burkina Faso An. gambiae / Chromosome 3 / #6 3R:18,600,001-19,100,000 82 (56 | 25)

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

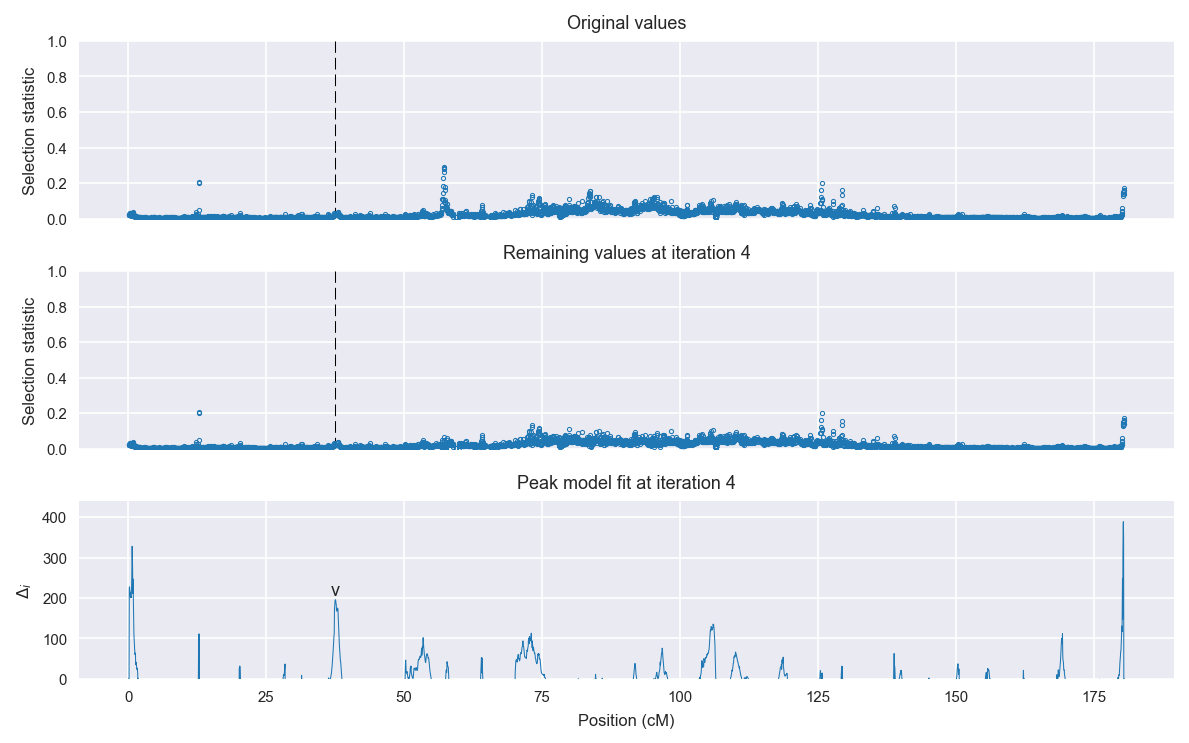

Selection signal in context. @@TODO

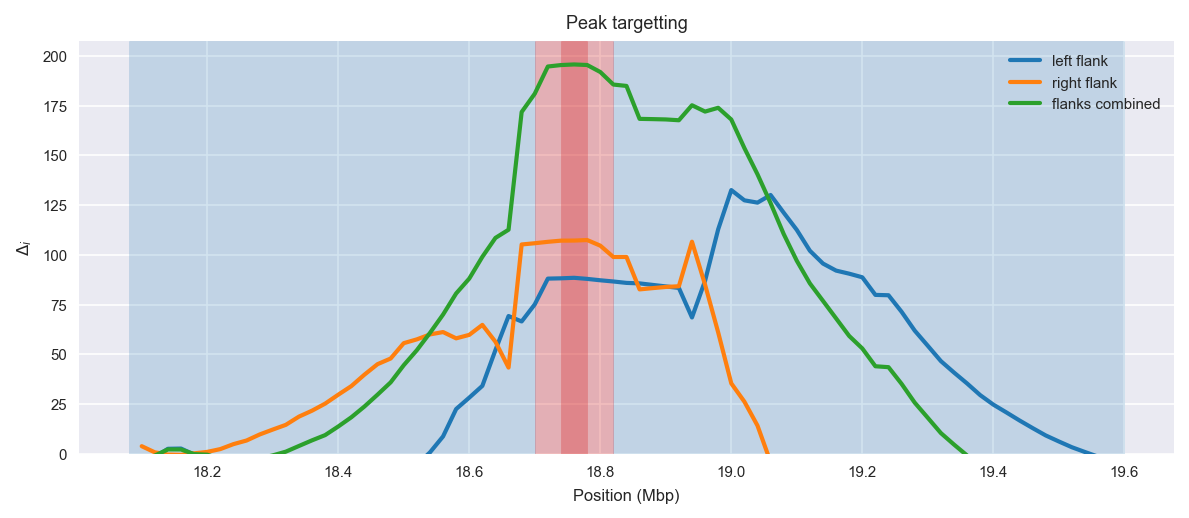

Peak targetting. @@TODO

Peak fitting diagnostics. @@TODO

Model fit reports

Left flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 31
    # data points      = 147
    # variables        = 3
    chi-square         = 0.001
    reduced chi-square = 0.000
    Akaike info crit   = -1687.150
    Bayesian info crit = -1678.178
[[Variables]]
    amplitude:   0.02422037 +/- 0.003543 (14.63%) (init= 0.5)
    decay:       0.45026961 +/- 0.075475 (16.76%) (init= 0.5)
    c:           0.00783937 +/- 0.000316 (4.03%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.827
    C(decay, c)                  = -0.425
    C(amplitude, c)              =  0.152

Right flank, peak model:

[[Model]]
    Model(exponential)
[[Fit Statistics]]
    # function evals   = 91
    # data points      = 141
    # variables        = 3
    chi-square         = 0.002
    reduced chi-square = 0.000
    Akaike info crit   = -1579.580
    Bayesian info crit = -1570.734
[[Variables]]
    amplitude:   0.08308106 +/- 0.019175 (23.08%) (init= 0.5)
    decay:       0.31291897 +/- 0.045147 (14.43%) (init= 0.5)
    c:           0.00873089 +/- 0.000347 (3.98%) (init= 0.03)
    cap:         1 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, decay)          = -0.953
    C(decay, c)                  = -0.347
    C(amplitude, c)              =  0.237

Left flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 146
    # variables        = 1
    chi-square         = 0.003
    reduced chi-square = 0.000
    Akaike info crit   = -1598.672
    Bayesian info crit = -1595.689
[[Variables]]
    c:   0.00905602 +/- 0.000346 (3.82%) (init= 0.03)

Right flank, null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 6
    # data points      = 140
    # variables        = 1
    chi-square         = 0.004
    reduced chi-square = 0.000
    Akaike info crit   = -1472.391
    Bayesian info crit = -1469.449
[[Variables]]
    c:   0.01005278 +/- 0.000438 (4.36%) (init= 0.03)

Comments
