IHS/CMS/2/6

This page describes a signal of selection found in the Cameroon An. gambiae populationusing the IHS (Cite et al. 20XX) statistic.The focus of this signal is on chromosome arm 2L between positions 42,394,895 and 42,434,895. The evidence supporting this signal is weak (\Delta_{i} < 50 on one or both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 3 genes overlap the focal region: AGAP0070862 (Sodium channel protein), AGAP007088 (peptidyl-prolyl cis-trans isomerase B (cyclophilin B)), AGAP007089.

The following 2 genes are within 50 kbp of the focal region: AGAP007087 (RpL41 - 60s ribosomal protein L41), AGAP007090.

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping selection signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Statistic Population Focus Peak model \Delta_{i} Max. percentile Known locus
IHS/BFS/2/7 IHS Burkina Faso An. gambiae 2L:42,314,895-42,454,895 222 95.5% nan
IHS/GNS/2/5 IHS Guinea An. gambiae 2L:42,274,895-42,414,895 98 87.9% nan

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

Selection signal in context. @@TODO

Peak targetting. @@TODO

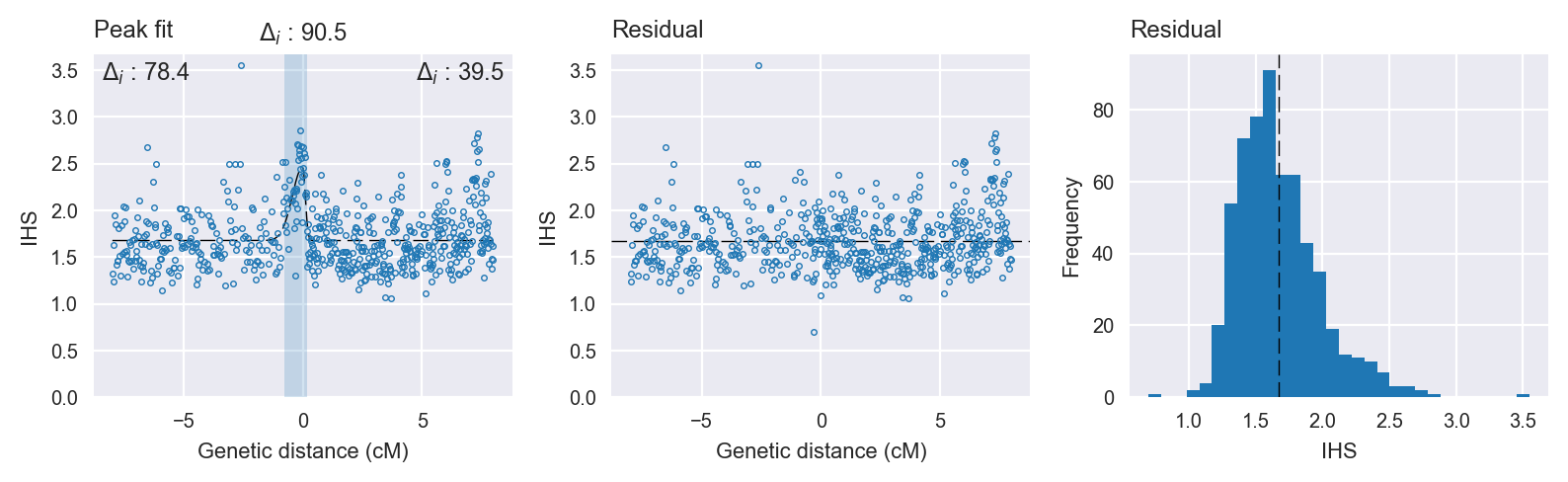

Peak fitting diagnostics. @@TODO

Model fit reports

Peak model:

[[Model]]
    Model(skewed_gaussian)
[[Fit Statistics]]
    # function evals   = 46
    # data points      = 593
    # variables        = 4
    chi-square         = 58.687
    reduced chi-square = 0.100
    Akaike info crit   = -1363.591
    Bayesian info crit = -1346.050
[[Variables]]
    center:      0 (fixed)
    amplitude:   0.78369435 +/- 0.078754 (10.05%) (init= 3)
    sigma:       0.21943608 +/- 0.031880 (14.53%) (init= 0.5)
    skew:        0.99999786 +/- 0.179797 (17.98%) (init= 0)
    baseline:    1.67656274 +/- 0.013625 (0.81%) (init= 1)
    ceiling:     100 (fixed)
    floor:       0 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, sigma)          = -0.464
    C(sigma, skew)               = -0.328
    C(sigma, baseline)           = -0.162
    C(amplitude, baseline)       = -0.135

Null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 11
    # data points      = 592
    # variables        = 1
    chi-square         = 68.698
    reduced chi-square = 0.116
    Akaike info crit   = -1273.041
    Bayesian info crit = -1268.658
[[Variables]]
    c:   1.71410248 +/- 0.014012 (0.82%) (init= 1)

Comments
