XPEHH/UGS.BFS/3/1

This page describes a signal of selection found in the Uganda An. gambiae population when compared with the Burkina Faso An. gambiae population using the XPEHH (Cite et al. 20XX) statistic.The focus of this signal is on chromosome arm 3R between positions 37,140,000 and 37,220,000. The evidence supporting this signal is strong (\Delta_{i} >= 100 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 4 genes overlap the focal region: AGAP009622 (6-phosphofructo-2-kinase / fructose-2,6-bisphosphatase), AGAP0096231 (GAPDH - glyceraldehyde 3-phosphate dehydrogenase), AGAP009624 (CTPsyn - CTP synthase), AGAP009625.

The following 2 genes are within 50 kbp of the focal region: AGAP009626 (Kv channel-interacting protein 4 isoform 2), AGAP009627.

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping selection signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Statistic Population Focus Peak model \Delta_{i} Max. percentile Known locus
XPEHH/UGS.CMS/3/1 XPEHH Uganda An. gambiae 3R:37,120,000-37,200,000 300 99.5% nan
H12/UGS/3/5 H12 Uganda An. gambiae 3R:36,460,000-37,520,000 206 94.0% nan

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

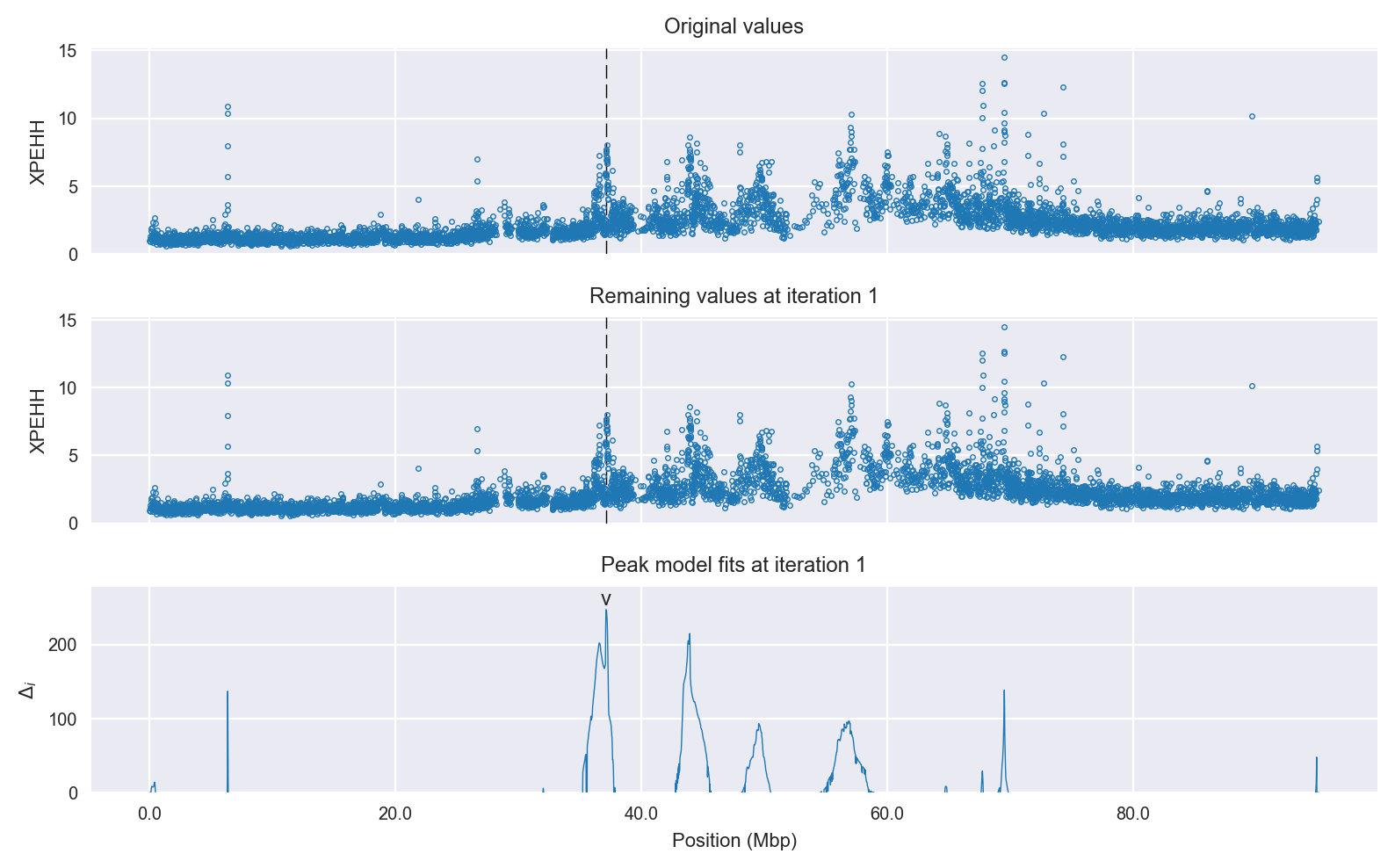

Selection signal in context. @@TODO

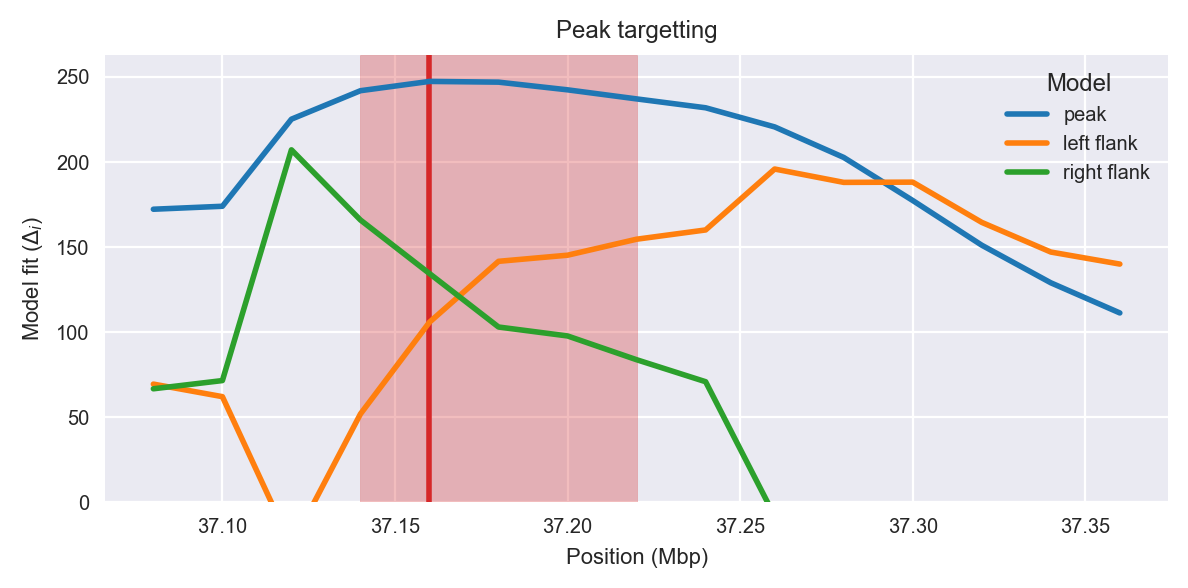

Peak targetting. @@TODO

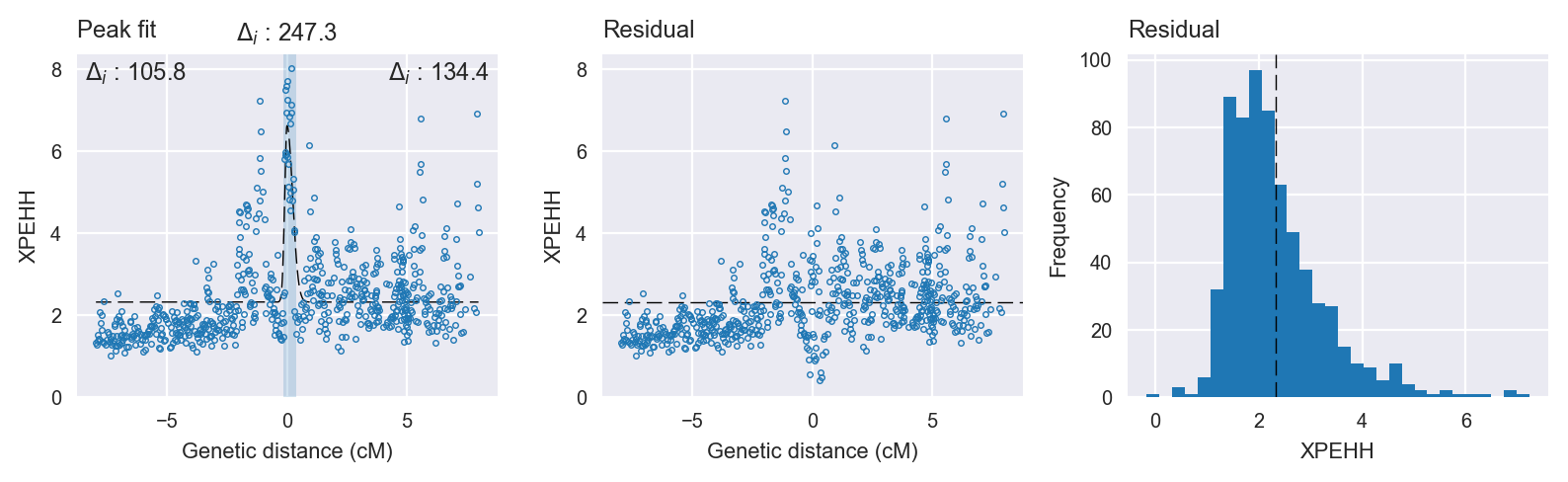

Peak fitting diagnostics. @@TODO

Model fit reports

Peak model:

[[Model]]
    Model(skewed_gaussian)
[[Fit Statistics]]
    # function evals   = 69
    # data points      = 666
    # variables        = 4
    chi-square         = 597.531
    reduced chi-square = 0.903
    Akaike info crit   = -64.250
    Bayesian info crit = -46.245
[[Variables]]
    center:      0 (fixed)
    amplitude:   4.29928750 +/- 0.283664 (6.60%) (init= 3)
    sigma:       0.15000000 +/- 3.00e-07 (0.00%) (init= 0.5)
    skew:       -0.64090888 +/- 0.107061 (16.70%) (init= 0)
    baseline:    2.32045383 +/- 0.037973 (1.64%) (init= 1)
    ceiling:     100 (fixed)
    floor:       0 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, sigma)          =  0.553
    C(sigma, skew)               = -0.175
    C(sigma, baseline)           =  0.120
    C(amplitude, baseline)       = -0.105

Null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 11
    # data points      = 665
    # variables        = 1
    chi-square         = 873.040
    reduced chi-square = 1.315
    Akaike info crit   = 183.009
    Bayesian info crit = 187.509
[[Variables]]
    c:   2.46073930 +/- 0.044464 (1.81%) (init= 1)
