XPEHH/AOM.GWA/X/2

This page describes a signal of selection found in the Angola An. coluzzii population when compared with the Guinea Bissau population using the XPEHH (Cite et al. 20XX) statistic.The focus of this signal is on chromosome arm X between positions 14,500,000 and 15,180,000. The evidence supporting this signal is moderate (\Delta_{i} >= 50 on both flanks).

Signal location. Blue markers show the values of the selection statistic. The dashed black line shows the fitted peak model. The shaded red area shows the focus of the selection signal. The shaded blue area shows the genomic region in linkage with the selection event. Use the mouse wheel or the controls at the top right of the plot to zoom in, and hover over genes to see gene names and descriptions.

Genes

The following 23 genes overlap the focal region: AGAP000795, AGAP000797 (E3 ubiquitin-protein ligase HECW2), AGAP0007982 (GLURIIc - ionotropic receptor GLURIIc), AGAP0008012 (GLURIIb - ionotropic receptor GLURIIb), AGAP0008032 (GLURIIa - ionotropic receptor GLURIIa), AGAP0008041 (GPXH2 - glutathione peroxidase 2), AGAP000805 (BTB/POZ domain-containing protein KCTD16), AGAP000806 (Angiopoietin-like 1), AGAP000807 (helix-loop-helix transcription factor), AGAP000808 (DNA damage-regulated autophagy modulator protein 2), AGAP013022, AGAP000809 (Proteasome 26S non-ATPase subunit 10), AGAP000810, AGAP000812 (calcium binding protein), AGAP0008131 (Frataxin homolog, mitochondrial), AGAP000814, AGAP000815 (INTB - integrin beta subunit), AGAP000817, AGAP000816, AGAP013474, AGAP013173, AGAP013424, AGAP012997.

Gene AGAP013289 is within 50 kbp of the focal region.

Key to insecticide resistance candidate gene types: 1 metabolic; 2 target-site; 3 behavioural; 4 cuticular.

Overlapping selection signals

The following selection signals have a focus which overlaps with the focus of this signal.

Signal Statistic Population Focus Peak model \Delta_{i} Max. percentile Known locus
H12/BFM/X/1 H12 Burkina Faso An. coluzzii X:15,100,000-15,300,000 1,267 100.0% Cyp9k1
XPEHH/BFS.UGS/X/1 XPEHH Burkina Faso An. gambiae X:14,960,000-15,140,000 961 99.9% nan
XPEHH/BFS.GWA/X/1 XPEHH Burkina Faso An. gambiae X:15,060,000-15,220,000 866 99.6% Cyp9k1
XPEHH/BFM.GWA/X/1 XPEHH Burkina Faso An. coluzzii X:15,060,000-15,260,000 852 99.4% Cyp9k1
H12/BFS/X/1 H12 Burkina Faso An. gambiae X:15,100,000-15,240,000 815 98.5% Cyp9k1
IHS/UGS/X/1 IHS Uganda An. gambiae X:14,640,000-15,360,000 517 96.7% Cyp9k1
XPEHH/BFM.AOM/X/1 XPEHH Burkina Faso An. coluzzii X:15,040,000-15,180,000 511 100.0% nan
IHS/BFM/X/1 IHS Burkina Faso An. coluzzii X:14,760,000-15,620,000 501 100.0% Cyp9k1
IHS/BFS/X/2 IHS Burkina Faso An. gambiae X:14,660,000-14,980,000 477 99.9% nan
H12/GNS/X/1 H12 Guinea An. gambiae X:14,960,000-15,160,000 419 97.8% nan
H12/UGS/X/1 H12 Uganda An. gambiae X:15,160,000-15,480,000 348 94.9% Cyp9k1
XPEHH/GAS.GWA/X/1 XPEHH Gabon An. gambiae X:14,460,000-14,860,000 301 98.5% nan
H12/AOM/X/2 H12 Angola An. coluzzii X:14,500,000-14,600,000 243 96.4% nan
XPEHH/UGS.BFS/X/1 XPEHH Uganda An. gambiae X:14,960,000-15,320,000 204 89.8% Cyp9k1

Diagnostics

The information below provides some diagnostics from the Peak modelling algorithm.

Selection signal in context. @@TODO

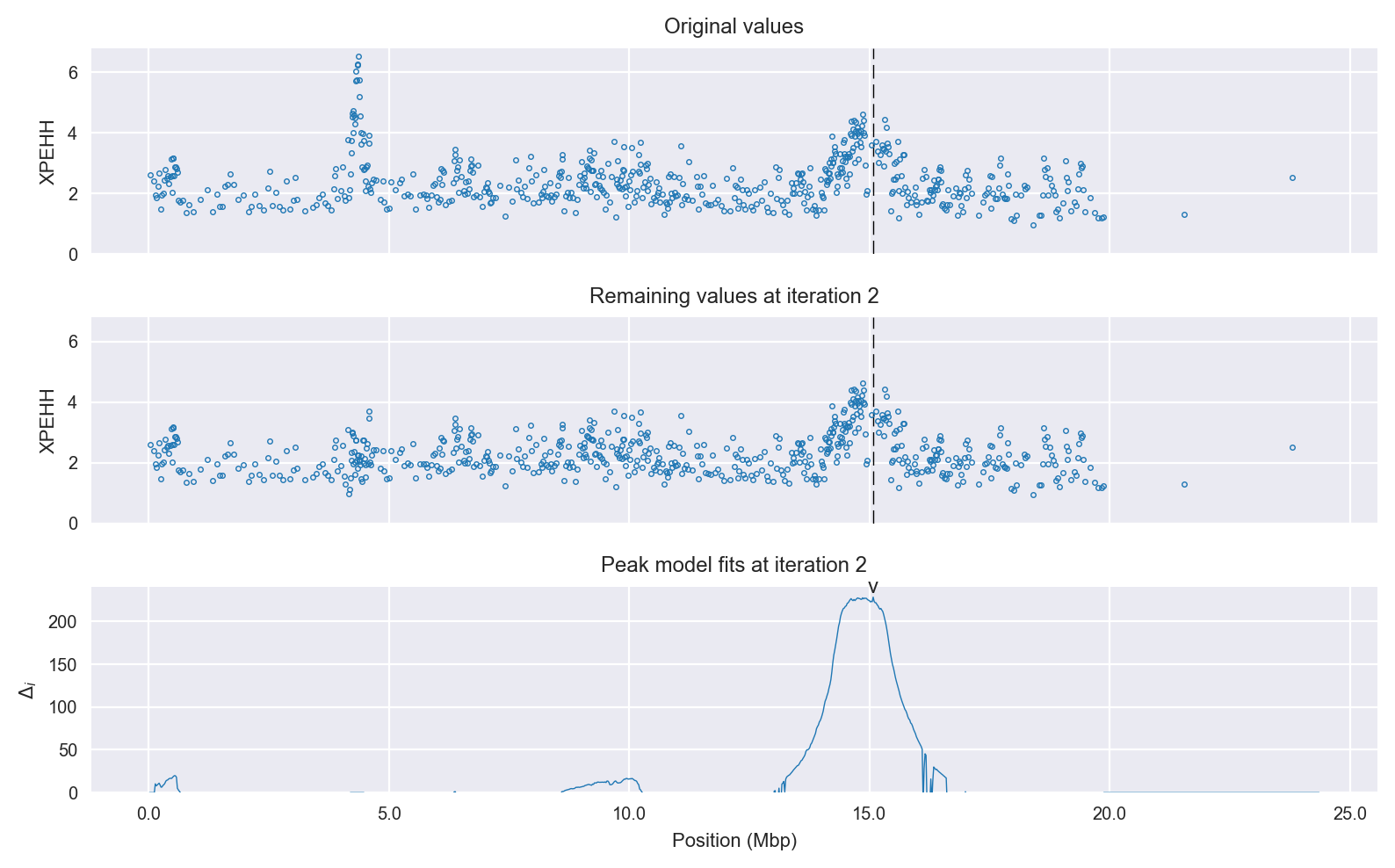

Peak targetting. @@TODO

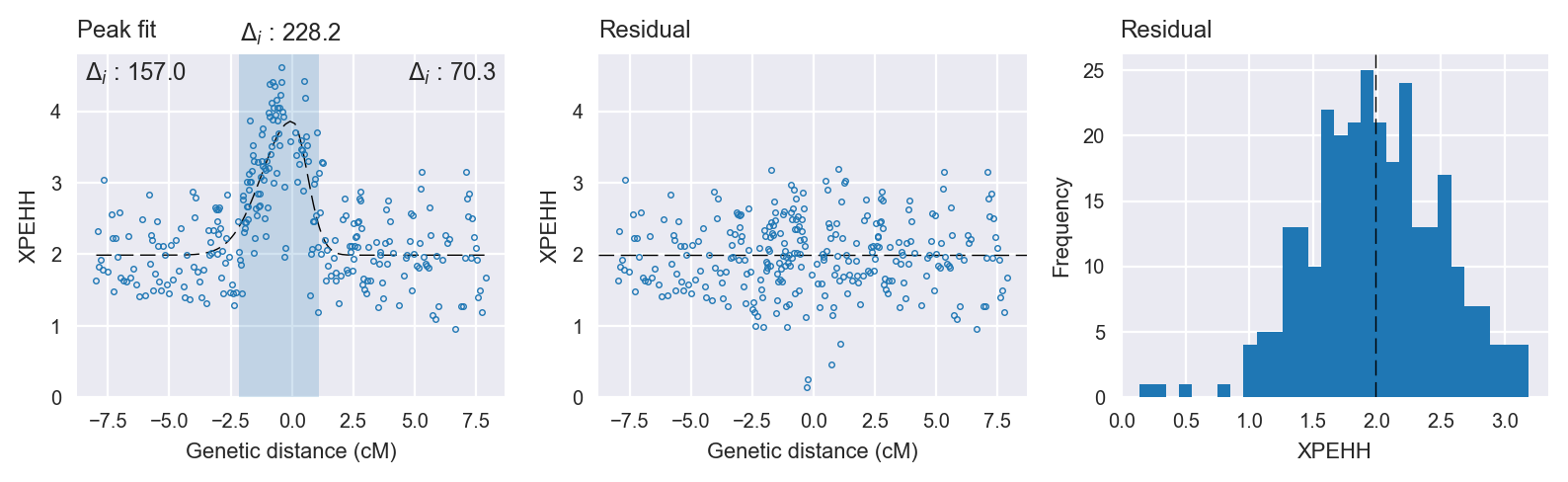

Peak fitting diagnostics. @@TODO

Model fit reports

Peak model:

[[Model]]
    Model(skewed_gaussian)
[[Fit Statistics]]
    # function evals   = 43
    # data points      = 284
    # variables        = 4
    chi-square         = 76.455
    reduced chi-square = 0.273
    Akaike info crit   = -364.685
    Bayesian info crit = -350.089
[[Variables]]
    center:      0 (fixed)
    amplitude:   1.87459608 +/- 0.110516 (5.90%) (init= 3)
    sigma:       0.87876423 +/- 0.062564 (7.12%) (init= 0.5)
    skew:        0.47873986 +/- 0.073299 (15.31%) (init= 0)
    baseline:    1.98835963 +/- 0.041953 (2.11%) (init= 1)
    ceiling:     100 (fixed)
    floor:       0 (fixed)
[[Correlations]] (unreported correlations are <  0.100)
    C(amplitude, sigma)          = -0.445
    C(sigma, baseline)           = -0.409
    C(sigma, skew)               = -0.276
    C(amplitude, baseline)       = -0.259

Null model:

[[Model]]
    Model(constant)
[[Fit Statistics]]
    # function evals   = 11
    # data points      = 283
    # variables        = 1
    chi-square         = 173.512
    reduced chi-square = 0.615
    Akaike info crit   = -136.443
    Bayesian info crit = -132.798
[[Variables]]
    c:   2.40555630 +/- 0.046627 (1.94%) (init= 1)
